Description

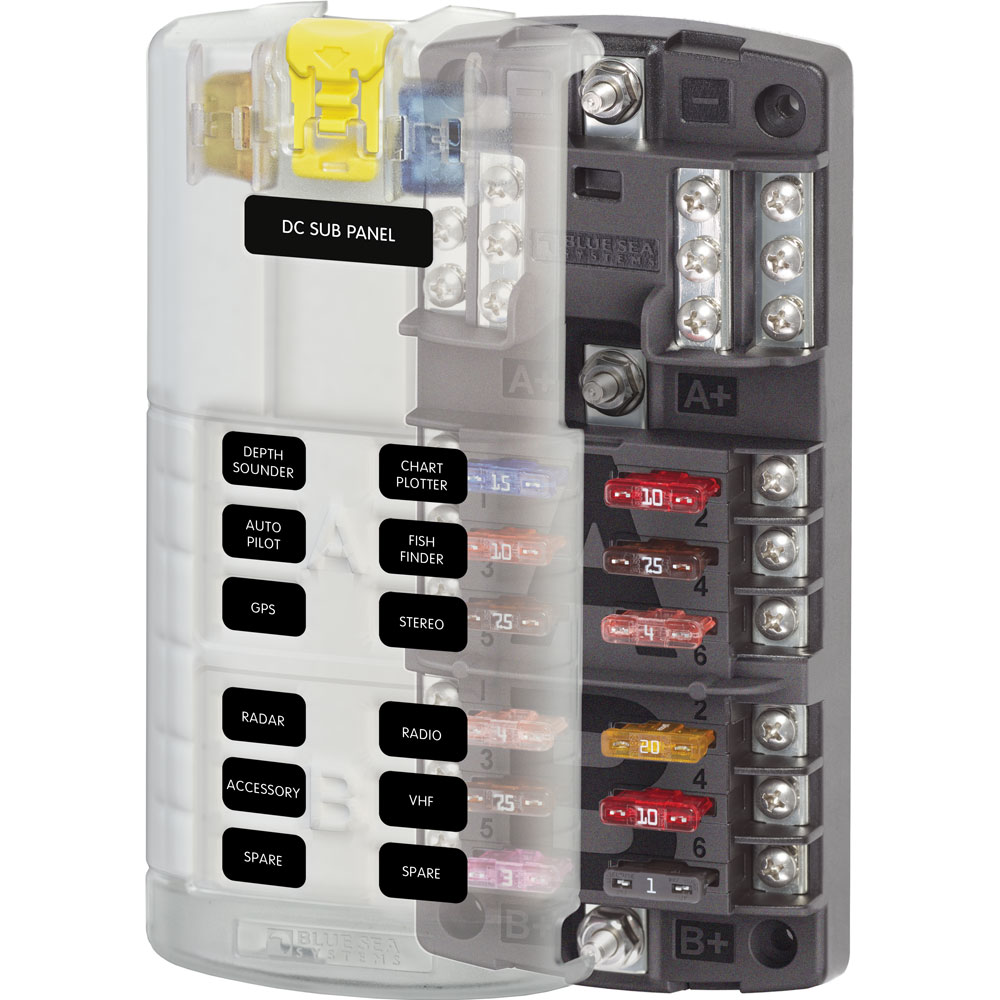

ST-Blade Split Bus Fuse Block
Features:
- Provides two isolated groups of six ATO/ATC circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
Specifications:
- Circuits: 12
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Screw Terminal Type: #8-32 Screws with captive star lock washer
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Amperage = NONE | Fuse Type = ATO/ATC | Type = Fuse Blocks
