Description

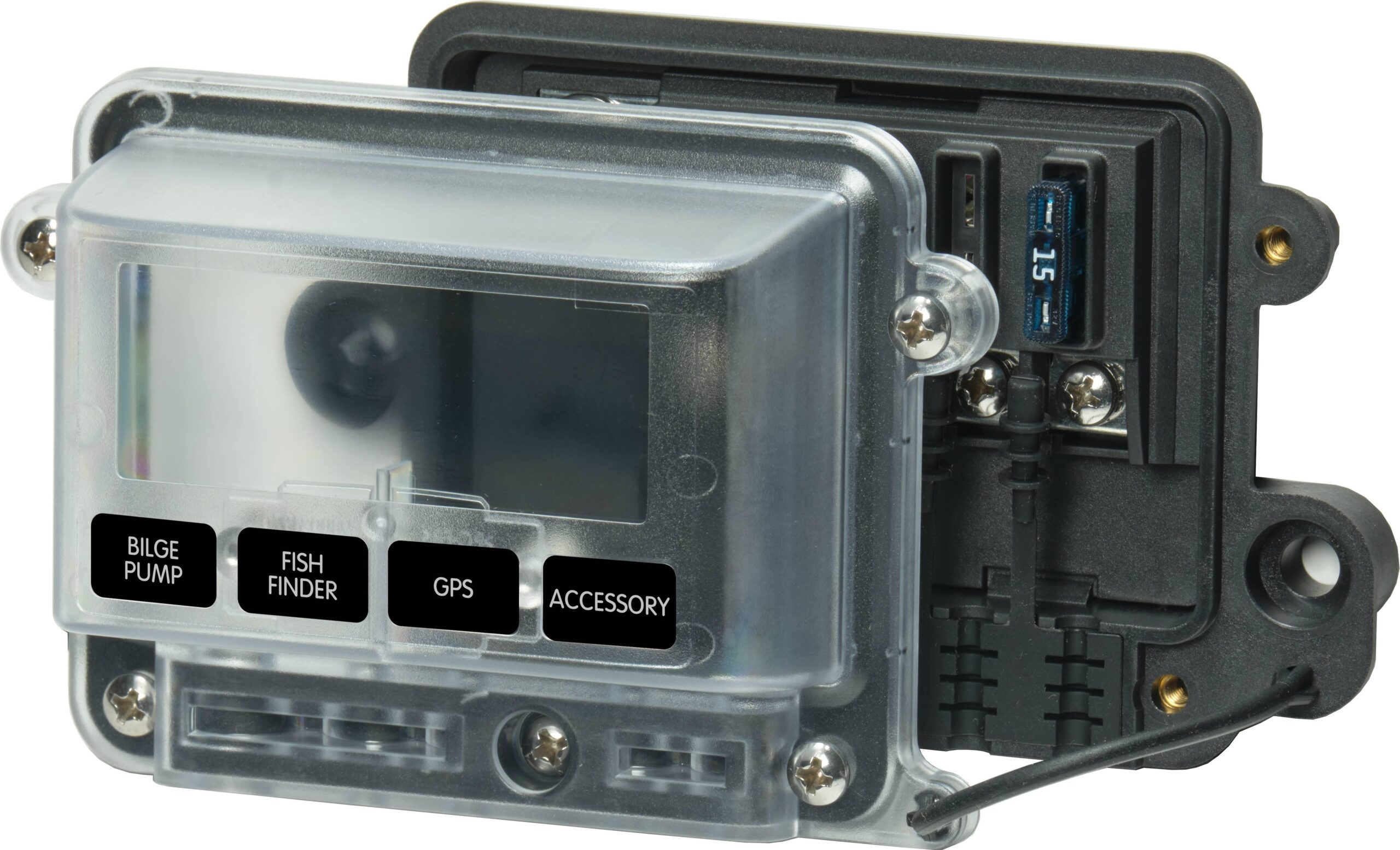

Blue Sea Systems ST-Blade Water-Resistant Fuse Block
Model: 5056-BSS
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
- Fuses and circuit breakers sold separately
Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.
Specifications
| Amperage | 80A per block, 25A per circuit |
| Maximum Voltage | 32V DC |
| Bus Material | Tin-Plated Copper C11000 |
| Mounting Holes | Clearance for 1/4 in (6mm) screws |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Wire Size | (1) 8 AWG to 4 AWG – Input, (4) 16 AWG to 10 AWG – Load |
| Ingress Protection | IP66 |
