Description

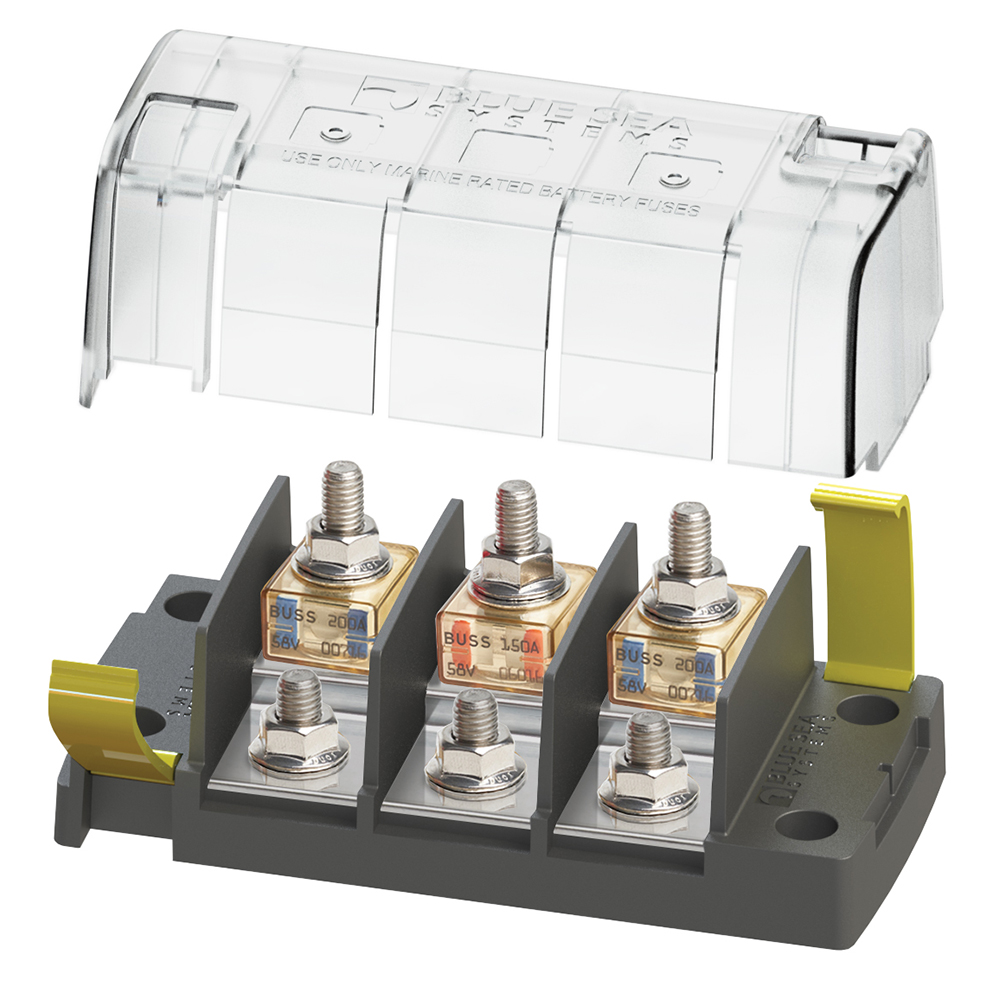

Surface Mount 3 Circuit Fuse Block – Independent Source
- Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
- The independent source fuse block (5194) is ideal for 3 output battery chargers
- The common source fuse block (5196) provides 3 loads from a single source
- Clip-on cover insulates terminal connections
- Versatile wiring options allow all wires to come out a single side
- Label recesses for easy circuit identification
- One-piece stainless flange nuts ensure safe and secure connections
Specifications
- Ignition Protected: Yes
- Maximum Amperage: 240 per circuit
- Maximum Voltage: 58v DC
- Maximum Torque: 100 in-lb
- Terminal Stud Size: M8 (5/16″-18)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Amperage = NONE | Fuse Type = Terminal | Type = Fuse Blocks
