Description

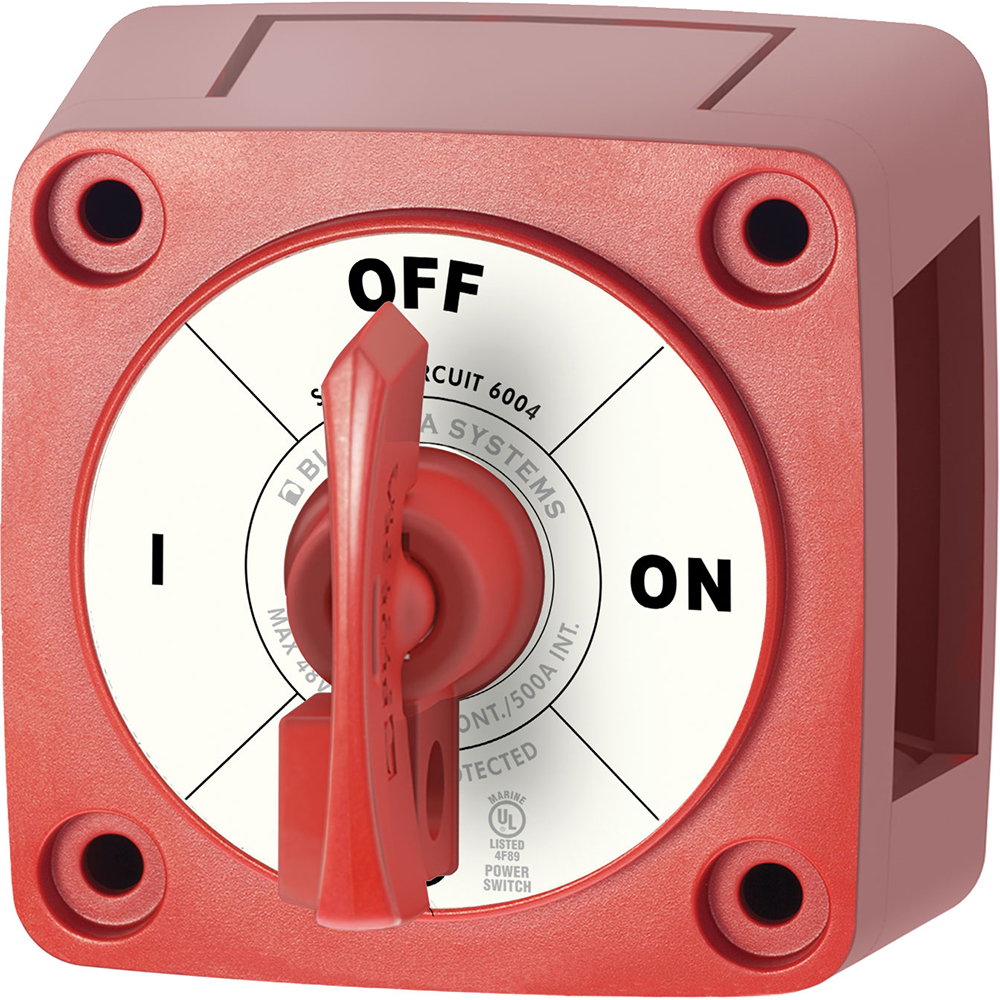

Single Circuit ON-OFF with Locking Key – Red
300 Amps continuous rating for outboards and small gasoline or diesel engines
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8″ (M10) ring terminals
- 7/8″ (22 mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- One-piece stainless flange nuts ensure safe and secure connections
- Isolating cover protects rear contacts
- Breakout tabs allow wire access in any direction
Specifications:
- Switch Type: Single Circuit ON-OFF
- Color: Red
- Maximum Voltage: 48V DC
- Continuous Rating: 300A
- Intermittent Rating: 500A
- Cranking Rating 30 sec: 900A
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Continuous Amperage = NONE | AFD = NONE | Lockable = NONE | Positions = NONE
