Description
6011

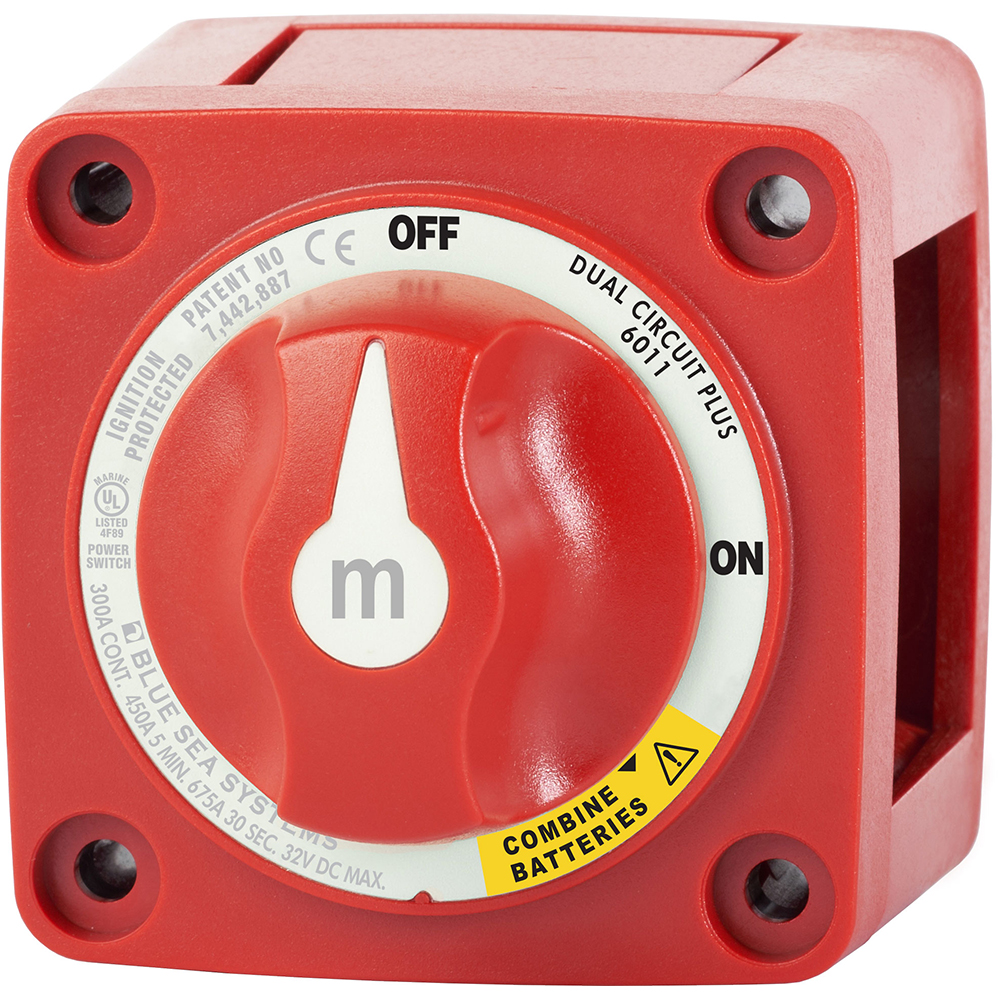

m-Series (Mini) Battery Switch
Dual Circuit Plus™
- Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery
- The "Combine Batteries" function offers the ability to combine the two battery banks in the event of a low Start battery
Features:
- Ignition protected – Safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Positions = 1 | AFD = NONE | Lockable = Yes | Continuous Amperage = 600a
