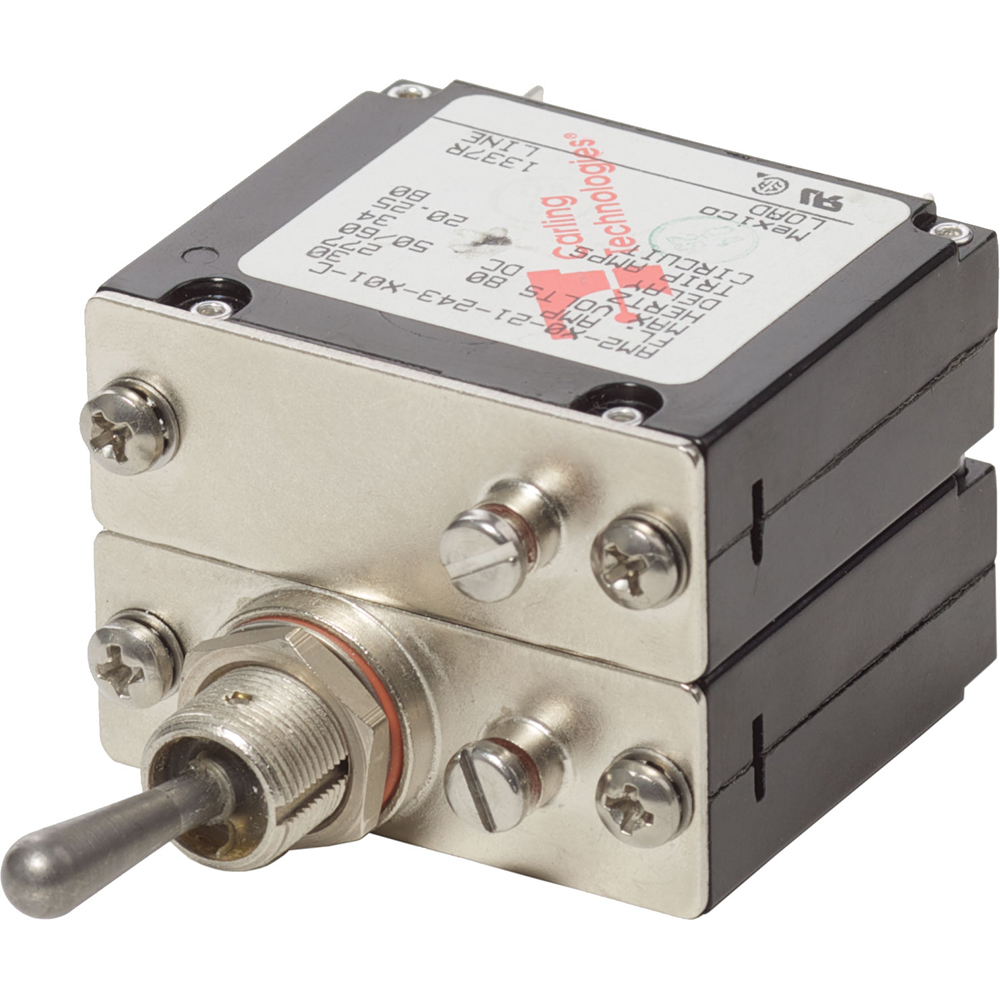

Blue Sea 7315 COTS Military Grade A-Series 30 Amp

73806
Blue Sea Systems

$94.11 $62.27

0 in stock
Qty :

Description

7315 COTS Military Grade A-Series 30 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

  • Amperage: 30A
  • Actuator Style: Metal Toggle
  • Poles: 2
  • Max Voltage: 277V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic – Trip Free
  • Interrupt Capacity: 1500 A AC, 7500A DC
  • Min Operating Temp: -40°C
  • Max Operating Temp: 85°C
  • Mounting Boss: 1/2-32 Hex Nut SS
  • Mounting Nut Torque: 30″-lb
  • Screw Terminal Torque: 14″-lb
  • Switching Cycles: 6000 Electrical/4000 Mechanical
  • Terminal Screw: #10-32 SS
  • Weight: 0.13lb (0.06 kg)
  • UL 1077

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Brochure Litreture

Amperage = 30a

Additional information

Weight 0.4 lbs
Dimensions 5 × 3 × 2 in
Model Number 7315
UPC 632085173159
