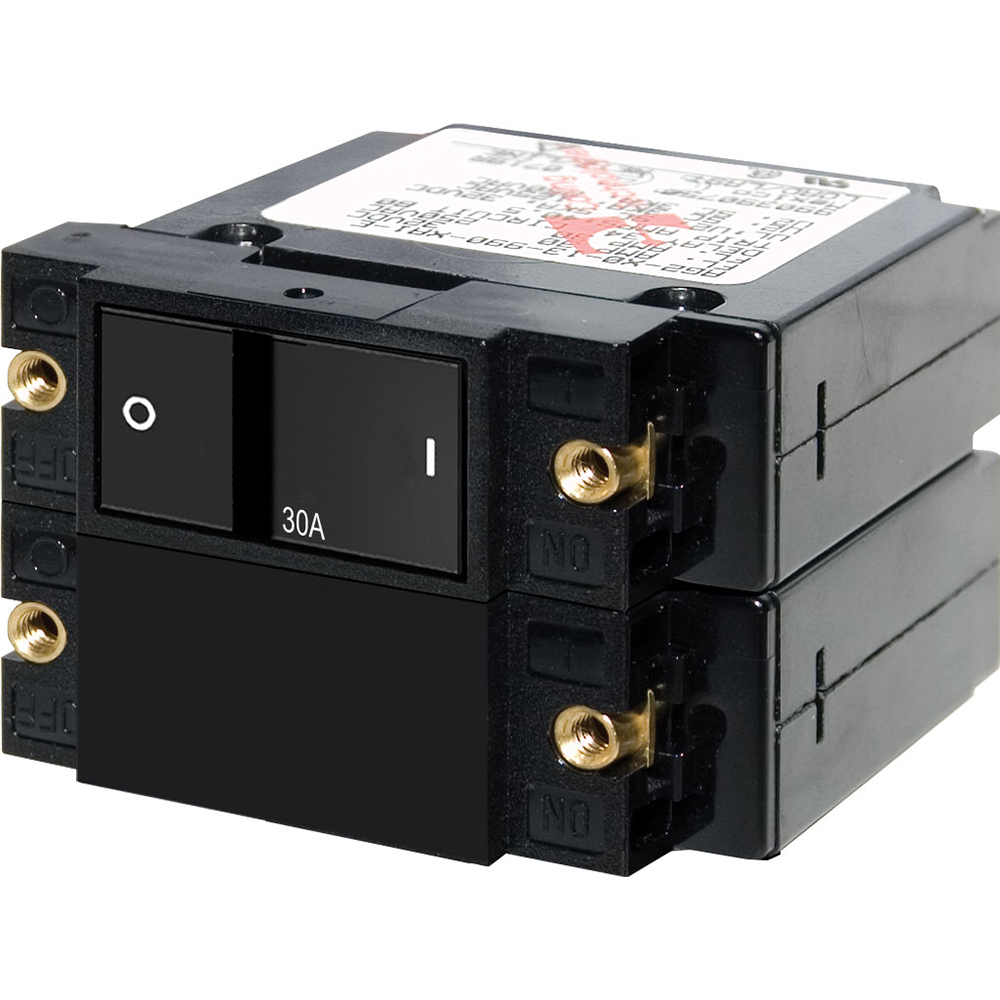

Blue Sea 7414 A-Series Flat Rocker Circuit Breaker – Double Pole – 30A

65274
Blue Sea Systems

$61.25 $30.74

8 in stock
Qty :
,

Description

A-Series Flat Rocker Circuit Breaker – Double Pole – 30A

Features:

  • Color actuator indicates “OFF” position
  • “Trip Free” design cannot be held “ON” during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting

Specifications:

  • Amperage : 30A AC / 30A DC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Amperage = 30a

Additional information

Weight 0.35 lbs
Dimensions 4 × 3 × 2 in
Model Number 7414
UPC 632085074142
