Description
7610

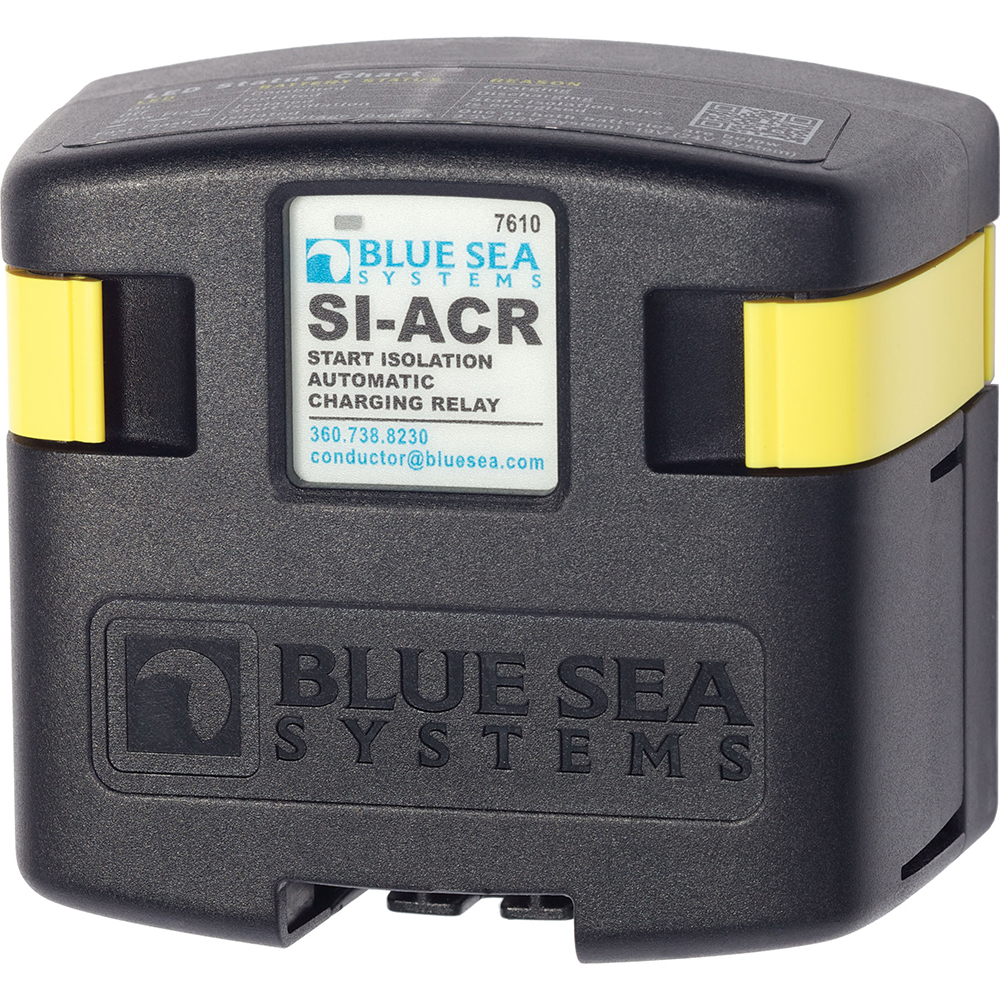

120 Amp SI-Series Automatic Charging Relay
- Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
- Automatically combines battery banks during the charging cycle and isolates under discharge
- 12/24 Volt auto ranging voltage input
- Waterproof rated IP67 – temporary immersion for 30 minutes
- Ignition protected – safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- LED light indicates when batteries are combined
- LED blinks in undervoltage lockout and starting lockout
- Supports high-output alternators up to 120 Amperes
- Included with the ADD A BATTERY Dual Circuit System
- Automatically combines battery banks during the charging cycle and isolates under discharge
- Ignition protected – safe for installation aboard gasoline-powered boats
- Activates from any charging source – alternators, battery chargers, or solar panels
- Hermetically sealed contacts / vaporproof
- Side and bottom knockouts for power cable connections
- Clip-on cover protects and insulates terminal connections
- Tin-plated copper studs for maximum corrosion resistance
- 7/8″ (22.22mm) stud length to accept multiple cable terminals
- 1/4″ x 0.031″ male quick connect terminals for ground and remote LED and starting interrupt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Positions = NONE | AFD = NONE | Lockable = NONE | Continuous Amperage = NONE
