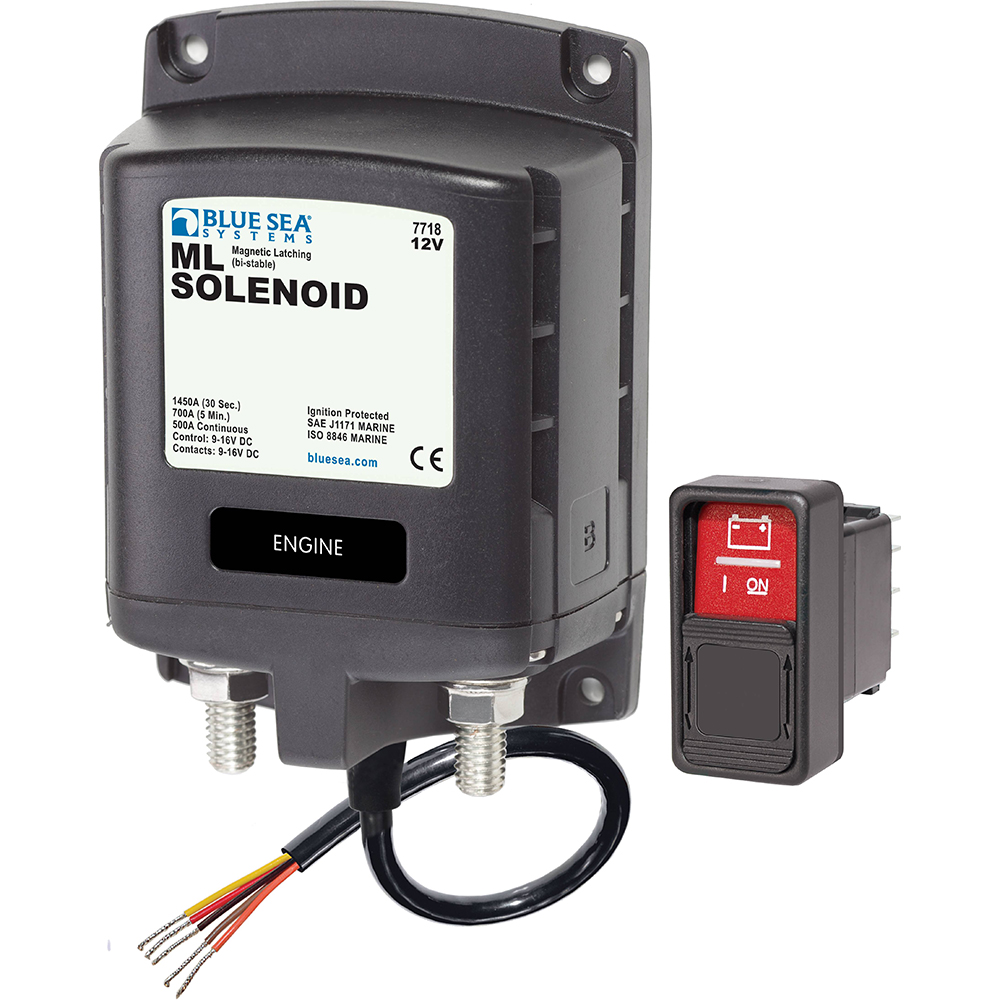

Blue Sea 7718 – ML-Series Solenoid Switch – Stripped Wire – 12V

94755
Blue Sea Systems

$299.97 $179.27

0 in stock
Qty :

Description

7718 – ML-Series Solenoid Switch – Stripped Wire – 12V

For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.

Features:

  • Silver alloy contacts provide high reliability for switching live loads
  • LED output to remotely indicate switch state
  • 3/8″- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • One-piece stainless flange nuts for safe and secure connections
  • Label recesses for circuit identification

Technical Specifications:

  • Control Circuit Voltage – 10.1 to 16.5 V DC
  • Control Circuit Connection – Tinned wire
  • Nominal Voltage – 12V DC
  • Coil Function – Auto-releasing
  • Amperage Operating Current – OFF – 8mA and ON 13mA
  • Mechanical Endurance – 100,000 Cycles
  • Terminal Ring Diameter Clearance – 1.18″ (30mm)
  • Terminal Stud Length – .875″ (22mm)
  • Terminal Stud Size – 3/8″ – 16 (M10)

In the Box:

  • 7718 Solenoid
  • Contura Switch w/integrated LED
  • Instruction Manual

*Sold as an Individual

AFD = NONE | Continuous Amperage = NONE | Lockable = NONE | Positions = NONE

Additional information

Model Number 7718
