Description

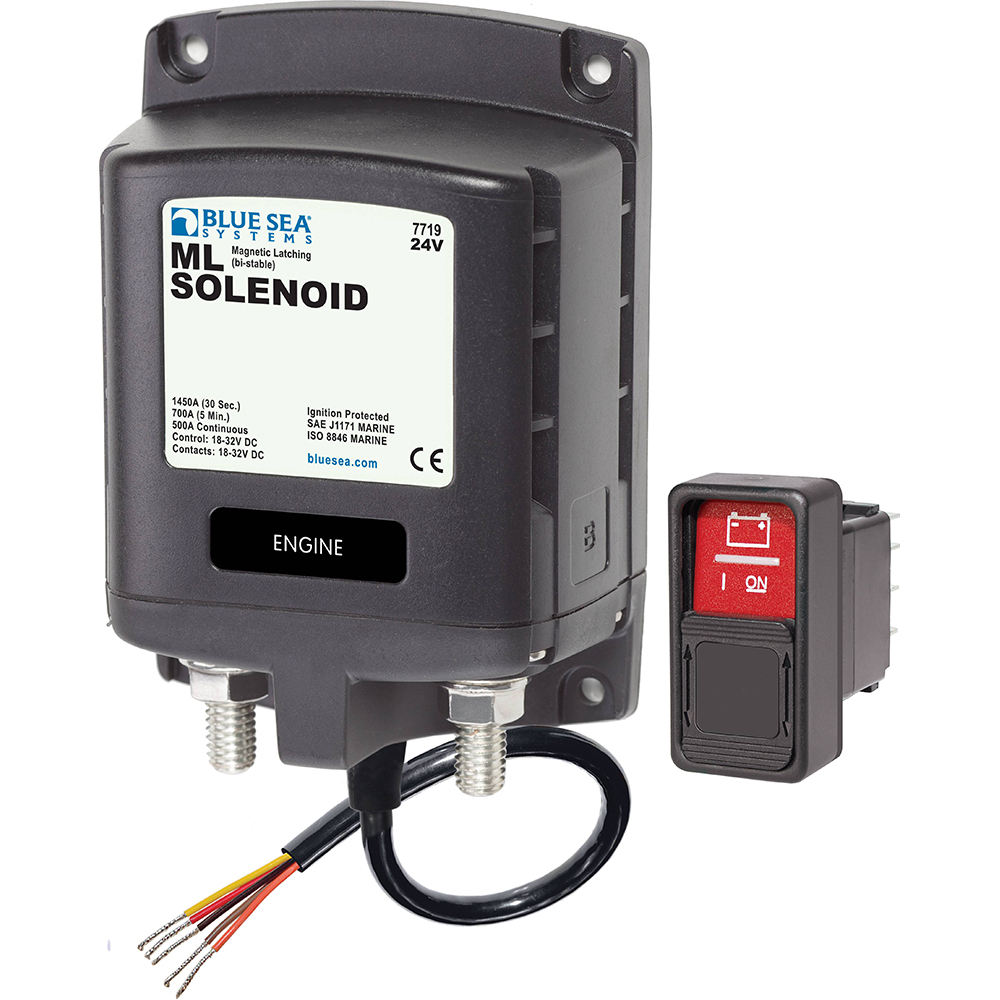

7719 – ML-Series Solenoid Switch – Stripped Wire – 24V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8″- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Technical Specifications:
- Control Circuit Voltage – 20.2 to 32.9 V DC
- Control Circuit Connection – Tinned wire
- Nominal Voltage – 24V DC
- Coil Function – Auto-releasing
- Amperage Operating Current – OFF – 8mA and ON 13mA
- Mechanical Endurance – 100,000 Cycles
- Terminal Ring Diameter Clearance – 1.18″ (30mm)
- Terminal Stud Length – .875″ (22mm)
- Terminal Stud Size – 3/8″ – 16 (M10)
In the Box:
- 7719 Solenoid
- Contura Switch w/integrated LED
- Instruction Manual
*Sold as an Individual
AFD = NONE | Continuous Amperage = NONE | Lockable = NONE | Positions = NONE
