Description

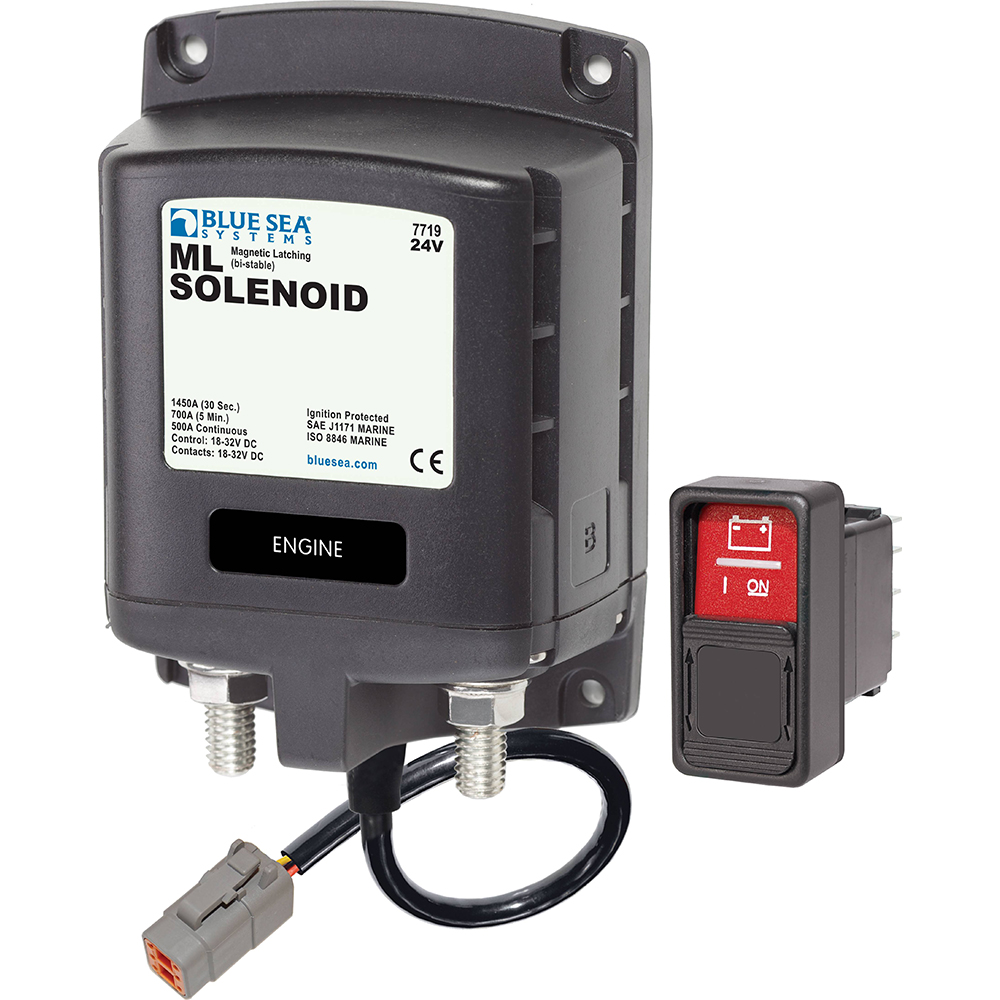

7719100 – ML-Series Solenoid Switch – Deutsch Connector  – 24V

For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.

Features:

• Silver alloy contacts provide high reliability for switching live loads
• LED output to remotely indicate switch state
• 3/8″- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
• One-piece stainless flange nuts for safe and secure connections
• Label recesses for circuit identification

Technical Specifications:

• Control Circuit Voltage – 20.2 to 32.9 V DC
• Control Circuit Connection – Deutsch DTM
• Nominal Voltage – 24V DC
• Coil Function – Auto-releasing
• Amperage Operating Current – OFF – 8mA and ON 13mA
• Mechanical Endurance – 100,000 Cycles
• Terminal Ring Diameter Clearance – 1.18″ (30mm)
• Terminal Stud Length – .875″ (22mm)
• Terminal Stud Size – 3/8″ – 16 (M10)

In the Box:

• 7719100 Solenoid
• Contura Switch w/integrated LED
• Instruction Manual

*Sold as an Individual

AFD = NONE | Continuous Amperage = NONE | Lockable = NONE | Positions = NONE
