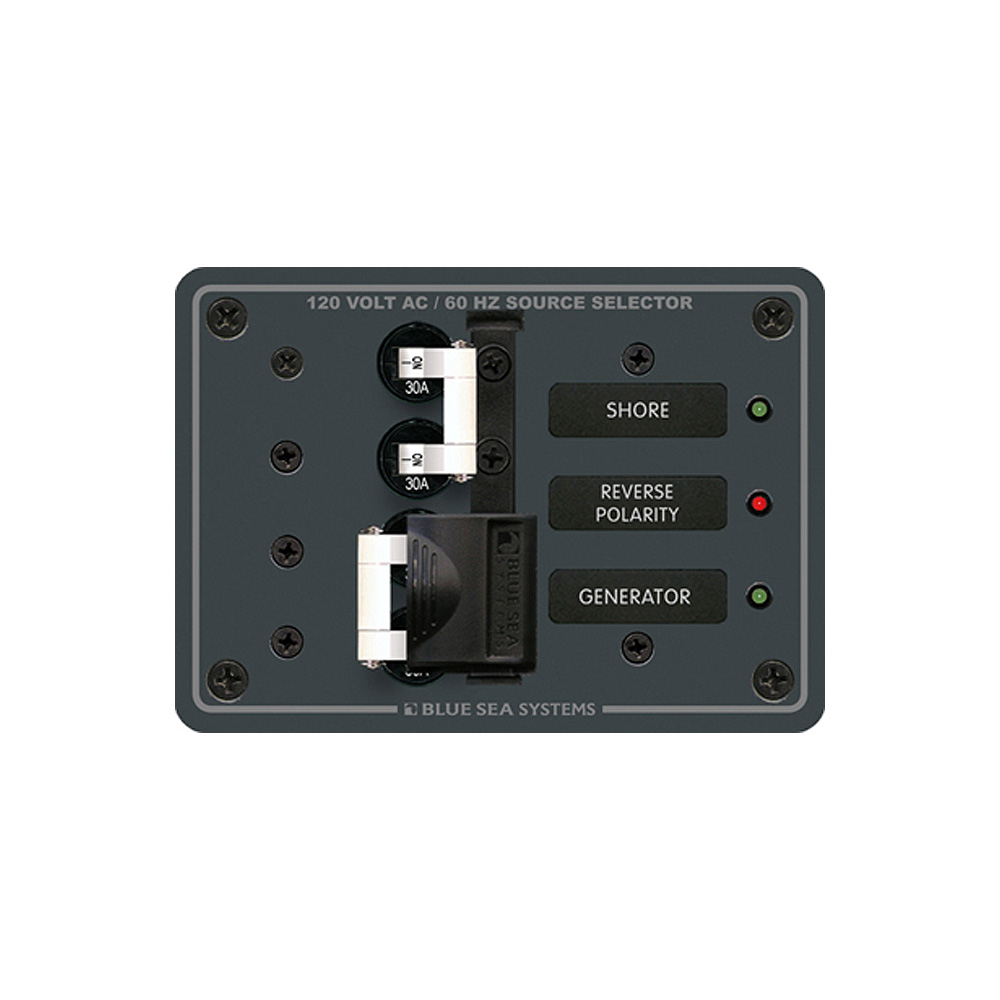

Blue Sea 8032 AC Toggle Source Selector 120V AC – 30AMP – White Switches

19051
Blue Sea Systems

$298.84 $179.54

4 in stock
Qty :
,

Description

8032 AC Toggle Source Selector 120V AC – 30AMP – White Switches

Features:

  • Double pole AC main circuit breakers with installed lockout slide
  • Prevents connecting both AC sources simultaneously
  • Maximum panel amperage – 50 Amperes
  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels – No kit required
  • “ON” indicating LEDs installed in all circuit positions

Specifications:

  • Source Selection: 2
  • Nominal Voltage: 120v AC
  • Height: 3.75″
  • Width: 5.25″

Included:

  • (2) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A
  • (1) 8031 Basic AC Panel Label Set – 30 Labels
  • (2) 8034 LED – 120v AC Green
  • (1) 8066 LED – 120v AC Red

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Waterproof = NONE | Max Breaker Quantity = 2 | AC/DC = AC | Voltage = 120v | Waterproof Rating = NONE

Additional information

Weight 1.4 lbs
Dimensions 9 × 7 × 5 in
Model Number 8032
UPC 632085080327
