Description

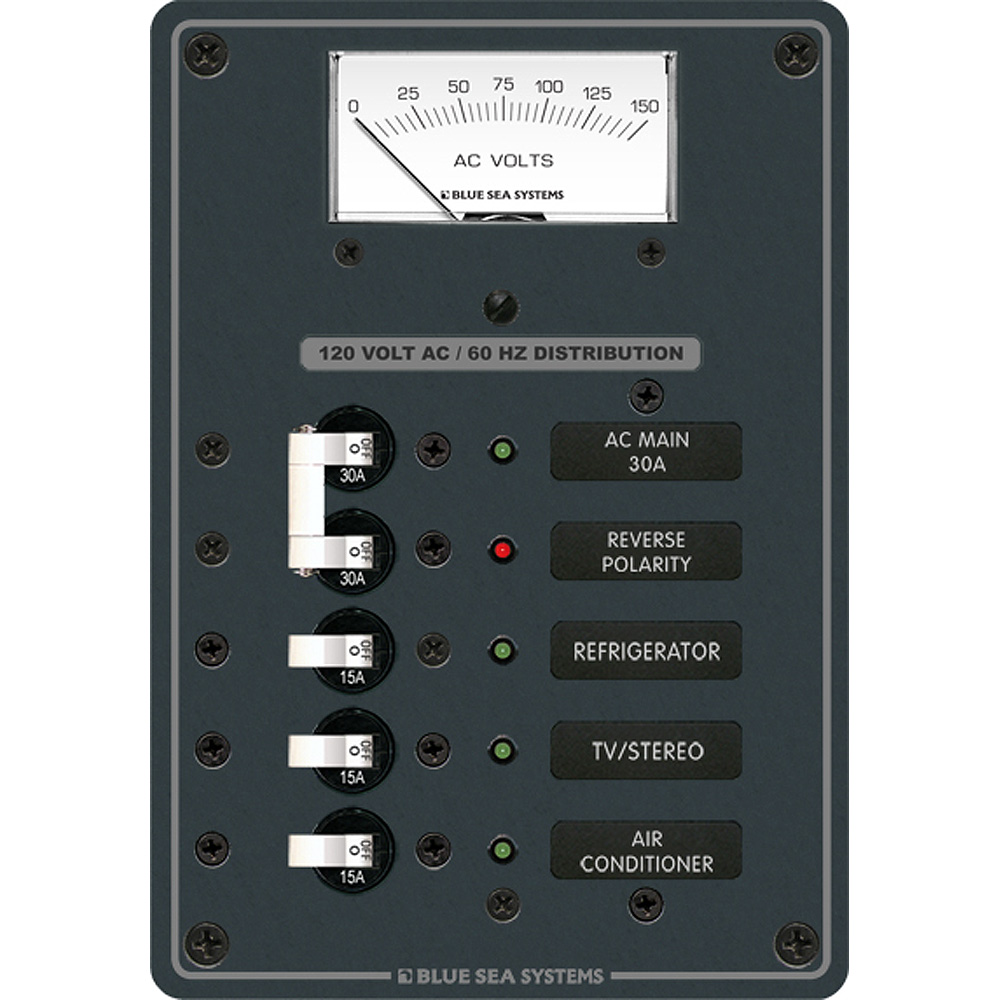

8043 AC Main +3 Positions Toggle Circuit Breaker Panel – White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Positions: 3
• Nominal Voltage: 120v AC
• Height: 7.5″
• Width: 5.25″

Included:

• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (4) 8034 LED – 120v AC Green
• (1) 8066 LED – 120v AC Red
• (3) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)
• (1) 9353 AC Voltmeter – 0 to 150v AC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner Manual

Waterproof = NONE | AC/DC = AC | Max Breaker Quantity = 3 | Voltage = 120v | Waterproof Rating = NONE
