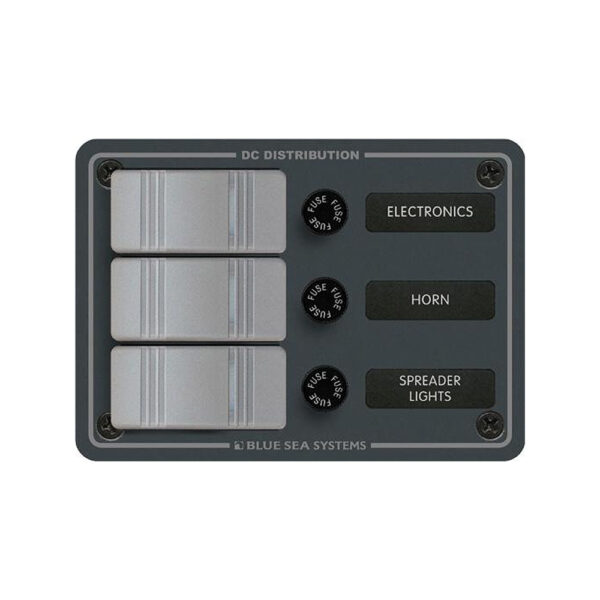

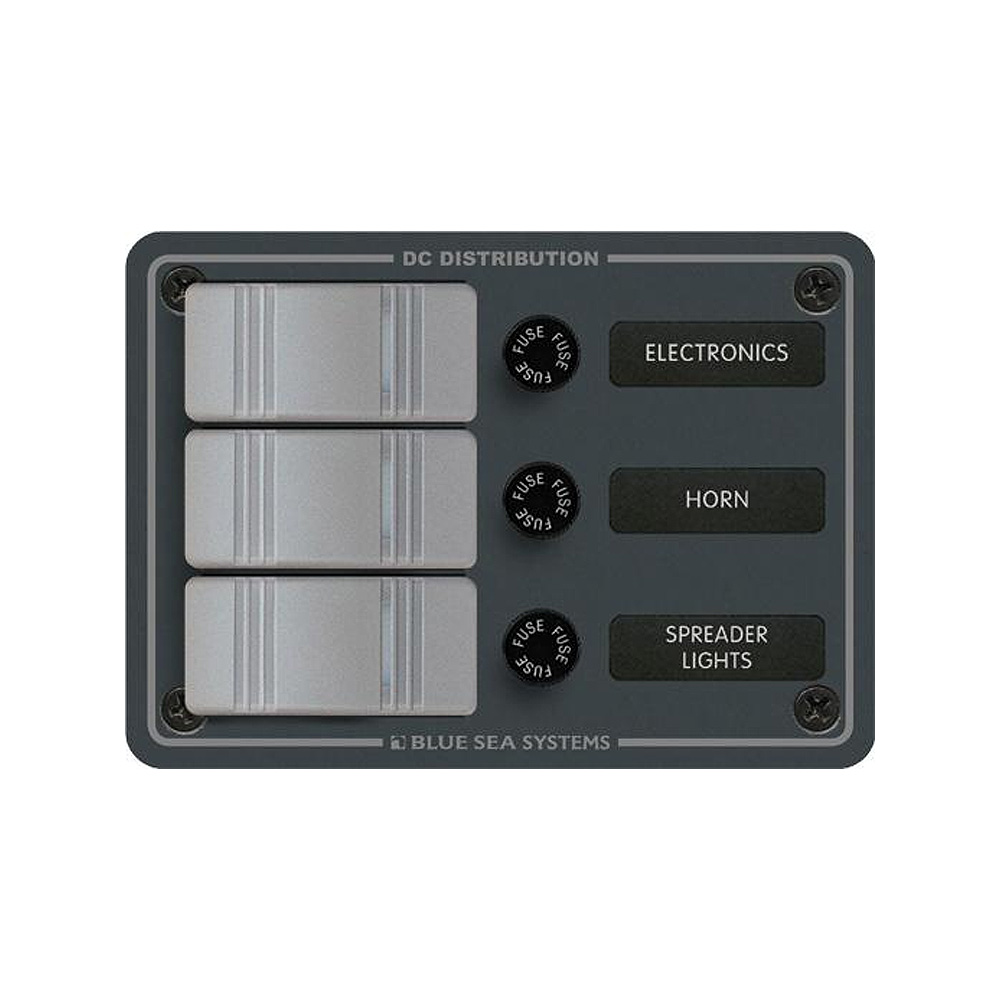

Blue Sea 8054 Slate Grey – 3 Position – Vertical

19045
Blue Sea Systems

$136.47 $81.71

0 in stock
Qty :

Description

8054 Slate Grey – 3 Position – Vertical

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 3
  • Nominal Voltage: 12v / 24v DC
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 3.75″
  • Width: 5.25″
  • Depth: 3″

Included:

  • (3) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8030 Basic DC Panel Label Set – 30 Labels
  • (3) 8230 Contura Switch SPST Gray – OFF-ON

*NOTE: Waterproof panel labels are not backlit

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner Manual

Waterproof = Resistant | AC/DC = DC | Max Breaker Quantity = 3 | Voltage = 12/24v | Waterproof Rating = NONE

Additional information

Weight 0.7 lbs
Dimensions 9 × 7 × 5 in
Model Number 8054
UPC 632085080549
