Description

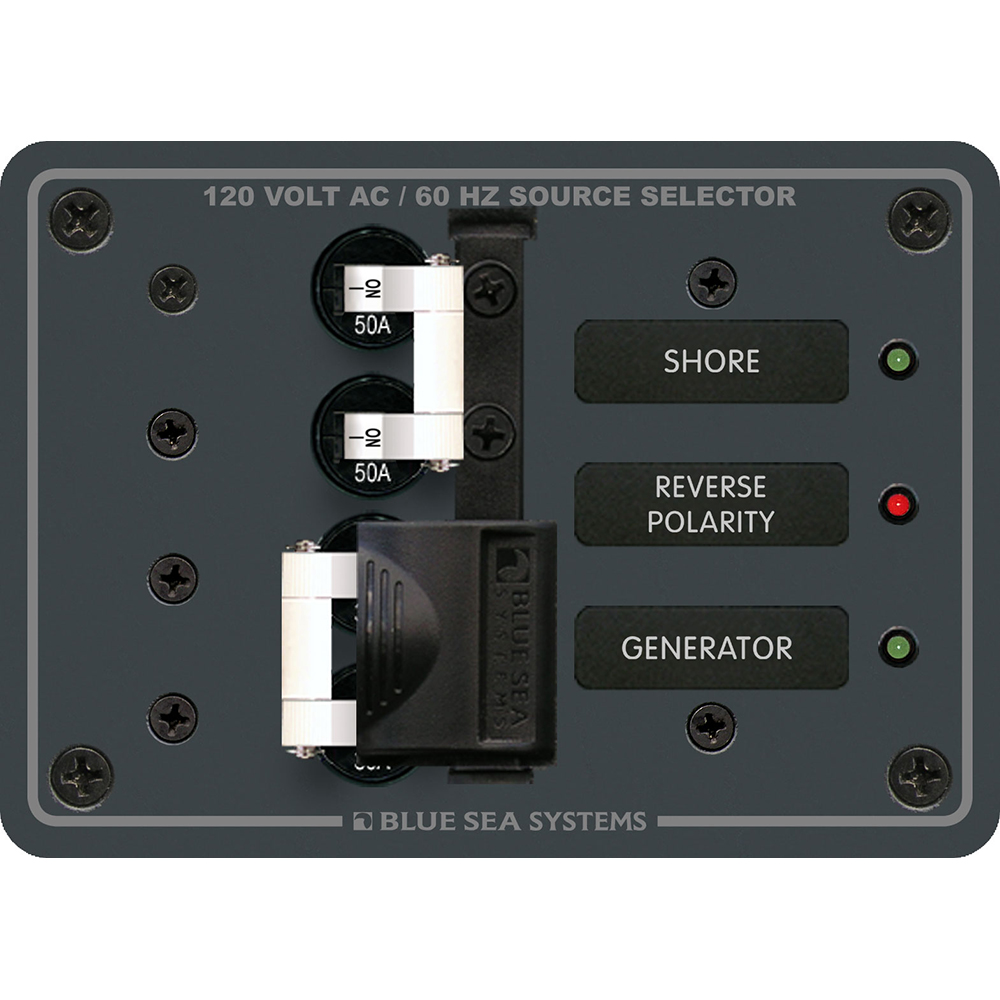

8061 AC Toggle Source Selector 120V AC – 50AMP
Features:
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Maximum panel amperage – 50 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
Specifications:
- Source Selection: 2
- Nominal Voltage: 120v AC
- Height: 3.75″
- Width: 5.25″
- Weight: 1.84 lbs
Included:
- (2) 7242 A-Series White Toggle Circuit Breaker – Double Pole 50A
- (1) 8031 Basic AC Panel Label Set – 30 Labels
- (1) 8034 LED – 120v AC Green
- (1) 8066 LED – 120v AC Red
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Max Breaker Quantity = 2 | AC/DC = AC | Waterproof Rating = NONE | Waterproof = NONE | Voltage = 120v
