Description

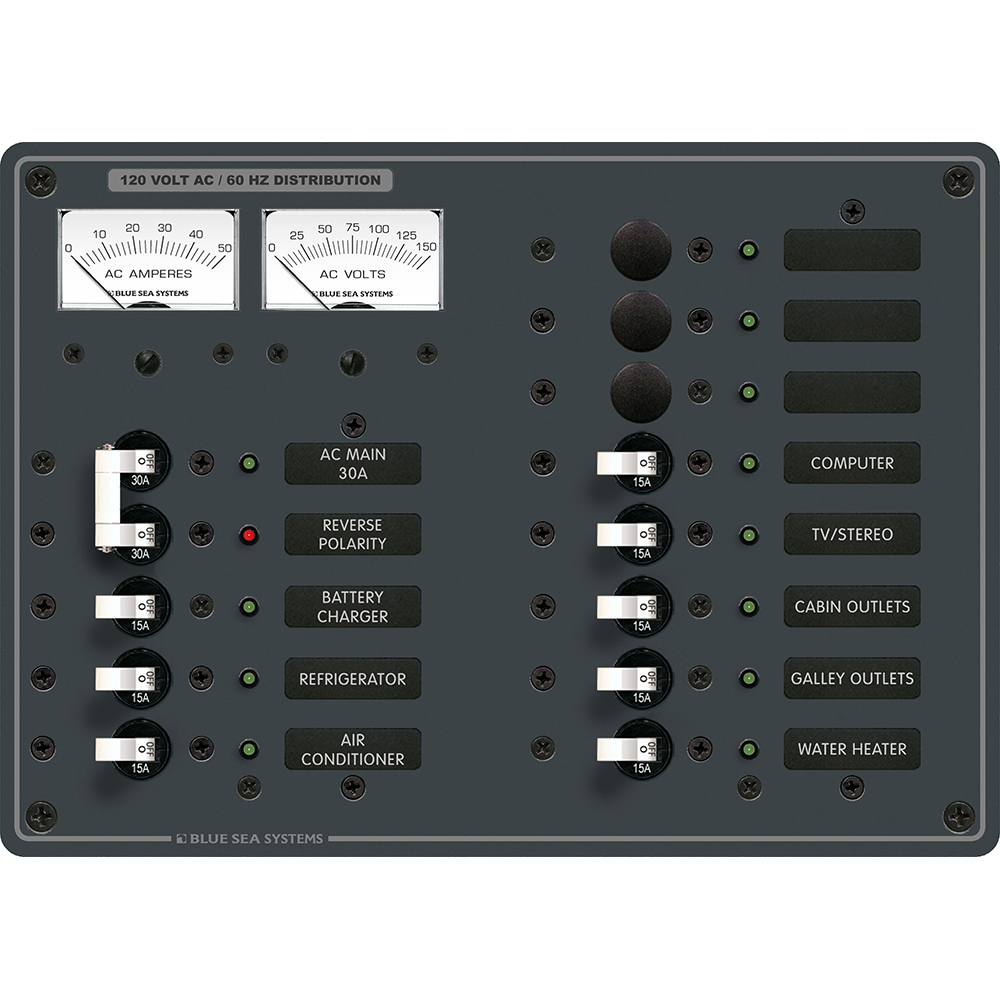

8076 AC Main +11 Positions Toggle Circuit Breaker Panel – White Switches
Features:
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
Specifications:
- Positions: 11
- Nominal Voltage: 120v AC
- Height: 7.5″
- Width: 10.5″
Included:
- (1) 8031 Basic AC Panel Label Set – 30 Labels
- (12) 8034 LED – 120v AC Green
- (1) 8066 LED – 120v AC Red
- (8) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A (Branch)
- (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)
- (1) 8244 AC Micro Voltmeter – 0 to 150v AC (Meter)
- (1) 8246 AC Micro Ammeter – 0 to 50A w/ Coil (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Waterproof = NONE | AC/DC = AC | Max Breaker Quantity = 11 | Waterproof Rating = NONE | Voltage = 120v
