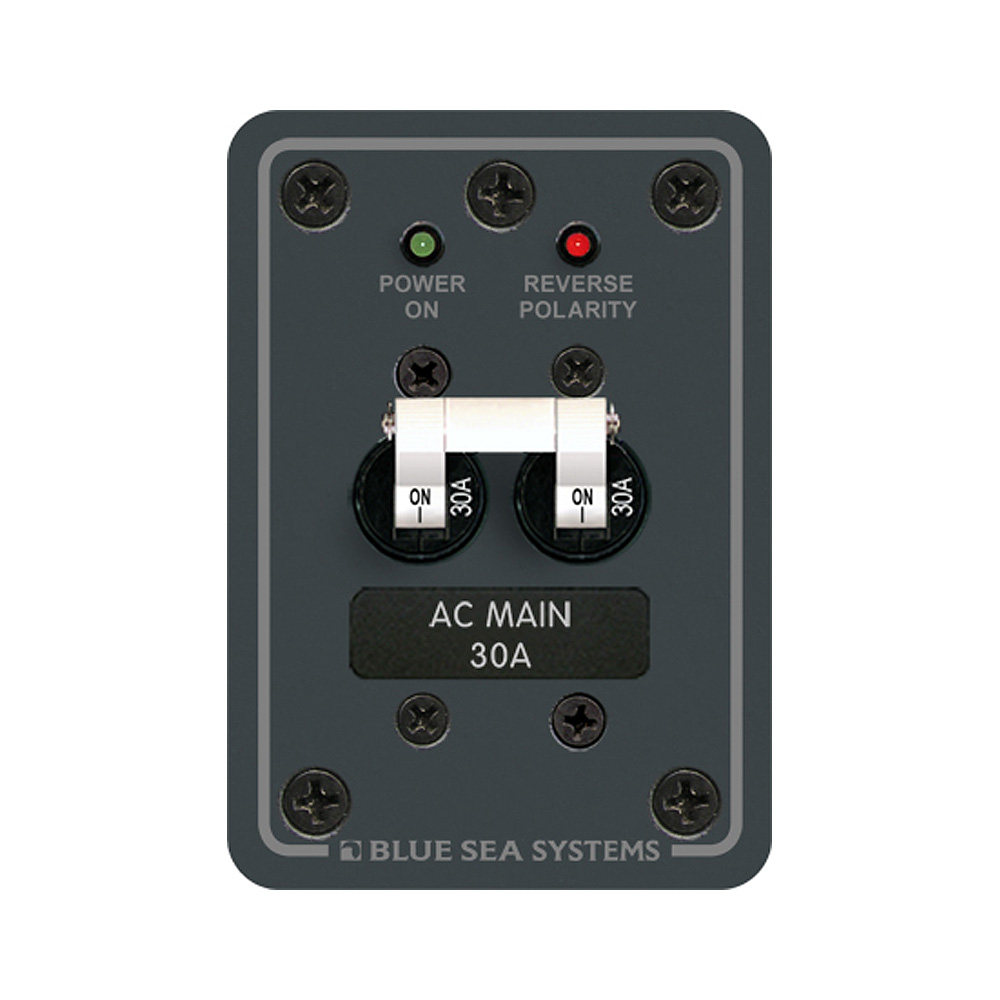

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel

19053
Blue Sea Systems

$153.43 $91.27

31 in stock
Qty :
,

Description

8077 AC Main Only Toggle Circuit Breaker Panel

Features:

  • Red reverse polarity indicating LED
  • Safety ground screw on panel back
  • Combines switching and circuit protection into a single device
  • “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

  • Nominal Voltage: 120v AC
  • Maximum Voltage: 277v AC / 65v DC
  • Height: 3.75″
  • Width: 2.63″

Included:

  • (1) 8034 LED – 120v AC Green
  • (1) 8066 LED – 120v AC Red
  • (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Waterproof = NONE | AC/DC = AC | Max Breaker Quantity = 1 | Voltage = 120v | Waterproof Rating = NONE

Additional information

Weight 0.7 lbs
Dimensions 7 × 4 × 3 in
Model Number 8077
UPC 632085000004
