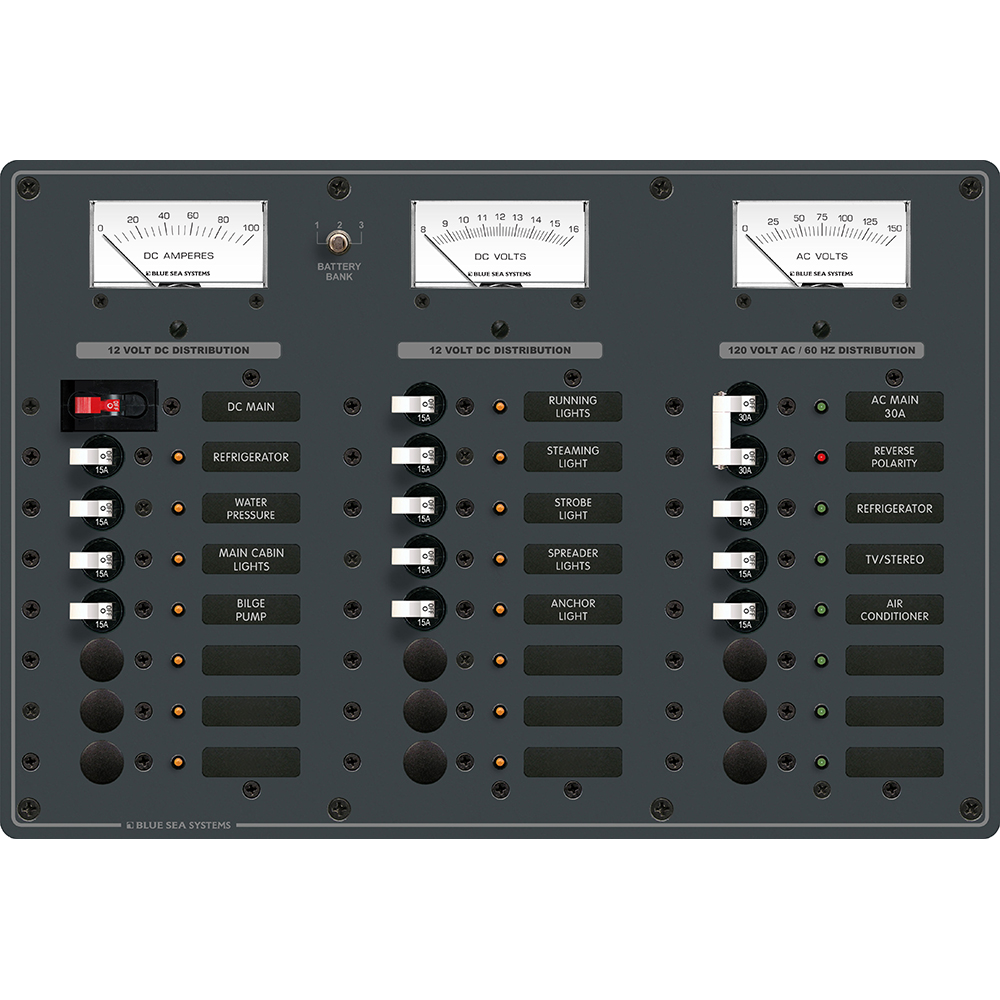

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel – White Switches

14573
Blue Sea Systems

$1339.52 $831.96

5 in stock
Qty :
,

Description

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel – White Switches

Features:

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

  • Red reverse polarity indicating LED
  • Ready for installation of optional 4029 AC Isolation Cover
  • 9353, 0-150 Volt AC Voltmeter

DC Features:

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

  • AC Positions: Main +6
  • DC Positions: Main +15
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A – (3) 15A AC Circuit Breakers
  • (1) 100A – (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner Manual

Waterproof = NONE | Max Breaker Quantity = 6 AC / 15 DC | AC/DC = Both | Waterproof Rating = NONE | Voltage = 120v/12v

Additional information

Weight 8.6 lbs
Dimensions 23 × 15 × 7 in
Model Number 8084
UPC 632085080846
