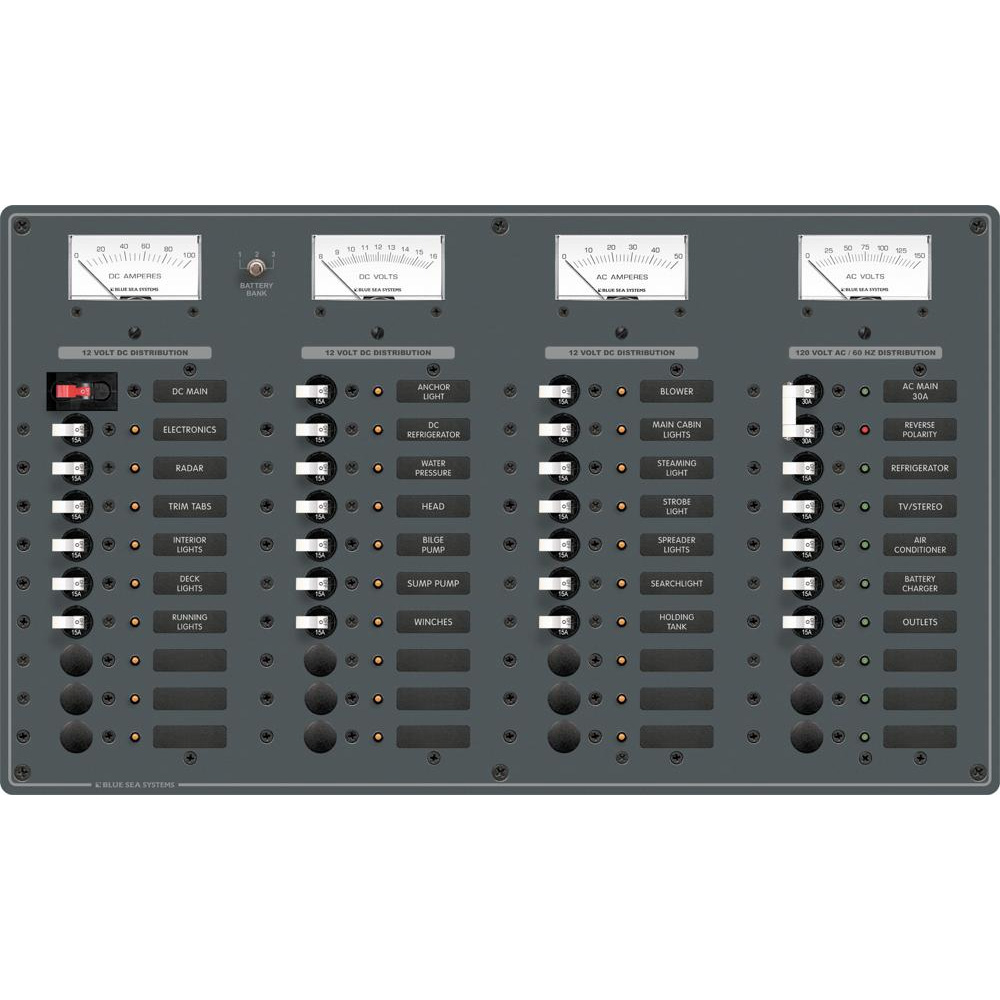

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)

20699
Blue Sea Systems

$2135.28 $1343.74

1 in stock
Qty :
,

Description

AC Main +8 Positions / DC Main +29 Positions

PN:   8095
White Switches

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC

AC Features

  • Red reverse polarity indicating LED
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

  • AC Positions: Source Selectors +8
  • DC Positions: Main +29
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A – (5) 15A AC Circuit Breakers
  • (1) 100A – (20) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Brochure Litreture

Max Breaker Quantity = 8 AC / 29 DC | AC/DC = Both | Waterproof = NONE | Voltage = 120v/12v | Waterproof Rating = NONE

Additional information

Weight 8 lbs
Dimensions 22 × 15 × 7 in
Model Number 8095
UPC 632085080952
