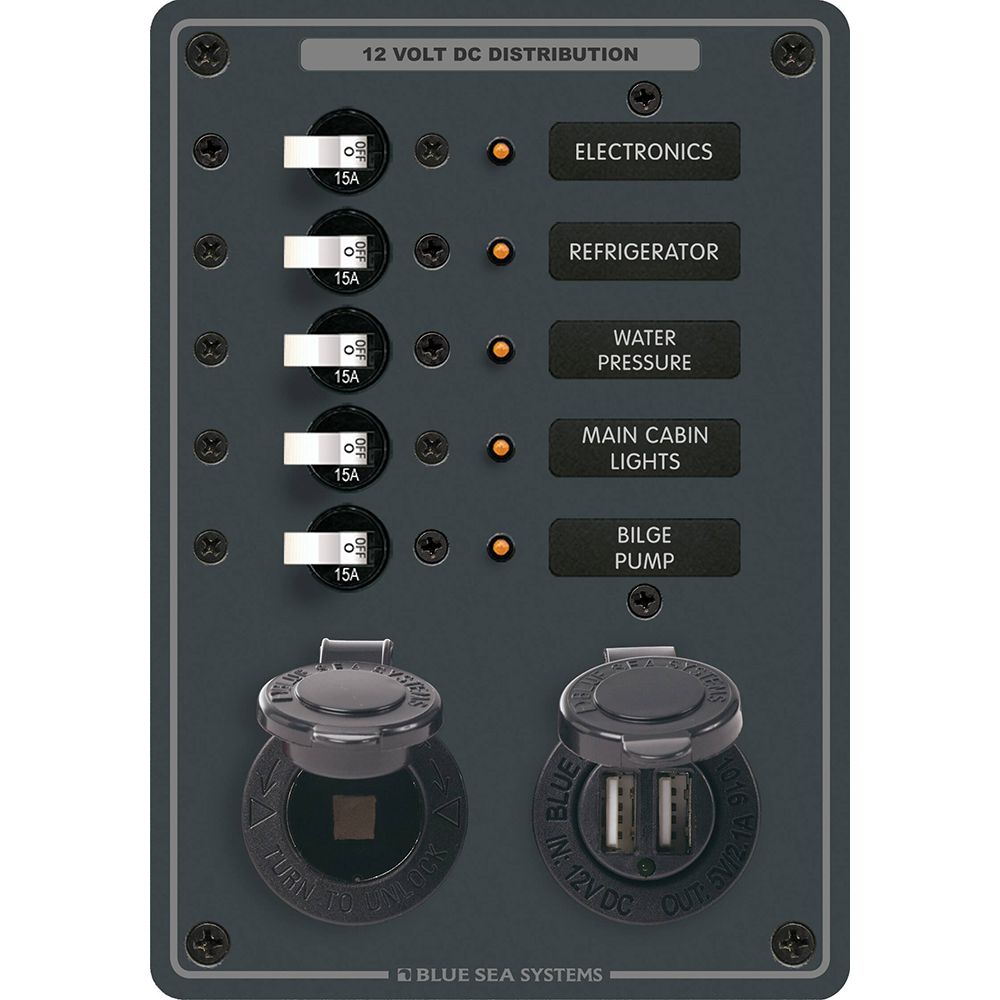

Blue Sea 8120 – 5 Position 12V Panel w/Dual USB & 12V Socket

90049
Blue Sea Systems

$372.35 $225.48

4 in stock
Qty :

Description

8120 – 5 Position 12V Panel w/Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  Distribute current from a high amperage source to lower amperage circuits.

Features:

  • ON-indicating LEDs
    • Backlit label positions
  • All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

  • Positions – Five (5)
  • Nominal Voltage – 12V DC
  • Maximum Amperage – 50A
  • Circuit Breaker Type – Magnetic Hydraulic – Trip Free
  • USB Output – 12/24V Dual USB
  • Socket Output – 12V Dash socket
  • Dimensions (H x W x D) – 7.5″ x 5.25″ x 2.5″ (191 x 133 x 64mm)

In the Box:

  • 8120 Panel
  • Instruction Manual

*Sold as an Individual

Owner Manual

AC/DC = DC | Max Breaker Quantity = 5 | Voltage = 12 | Waterproof Rating = NONE | Waterproof = NONE

Additional information

Weight 1.95 lbs
Dimensions 12 × 7 × 5 in
Model Number 8120
UPC 632085081201
