Description

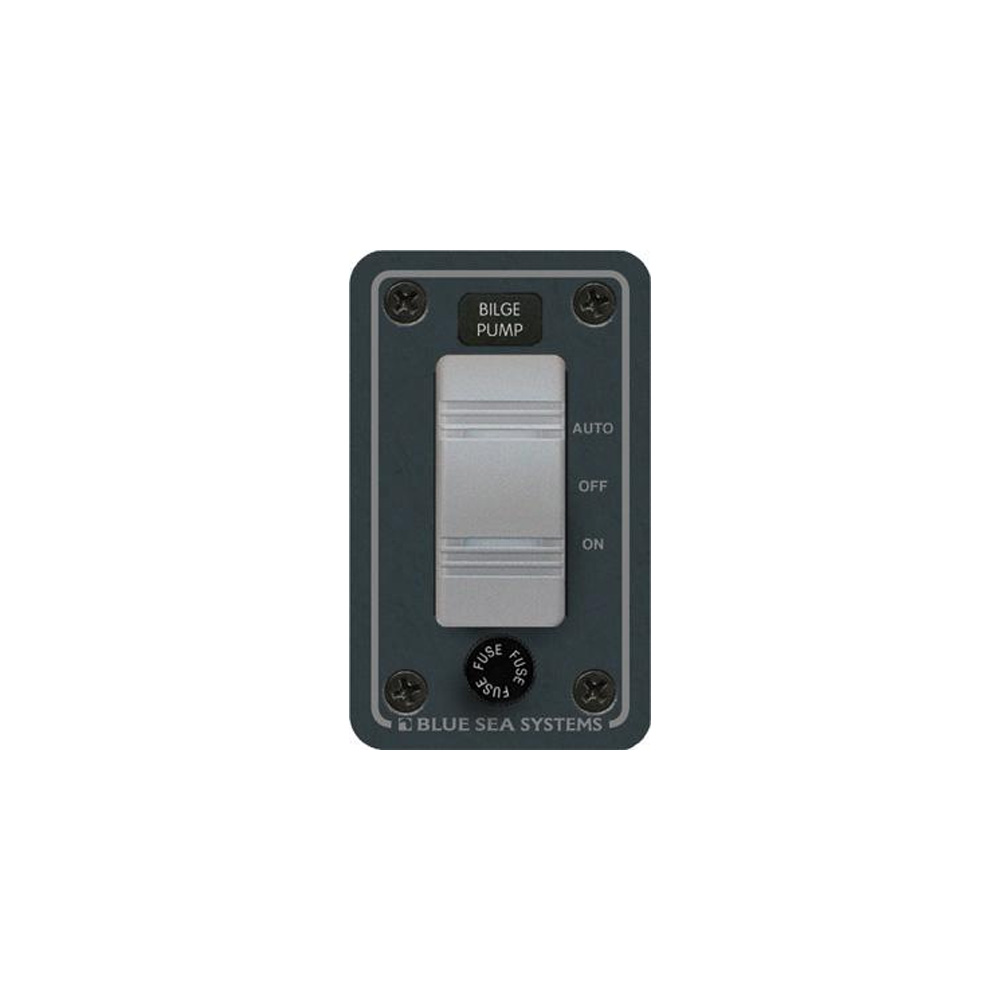

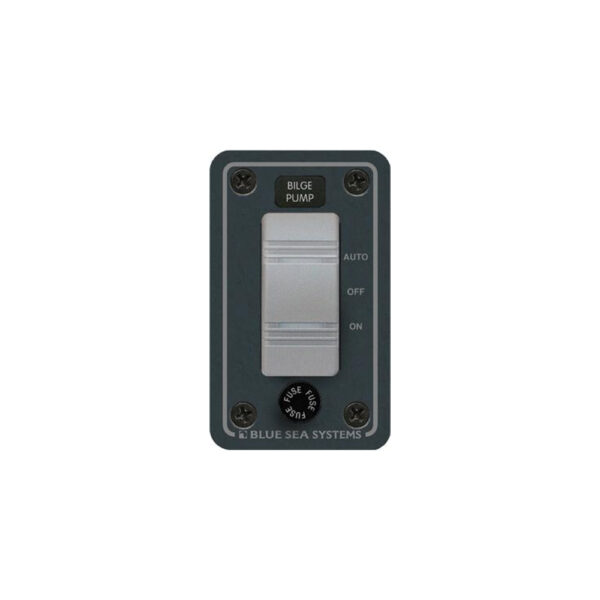

8263 Contura Single Bilge Pump Control Panel
Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp
Features:
- Designed for 12 or 24V DC systems
- ON – OFF – AUTO Contura Switch
- Watertight mounting gasket
- Fuse holders accept commonly available AGC and MDL glass fuses
- “ON” LED embedded in switch indicates pump is running
- Completely wired and ready to install
Specifications:
- Weatherproof – Water Resistant
- No. of Bilge Pumps – one (1)
- Nominal Voltage – 12/24V
- Panel Cumulative Rating – 45A
- Switch Rating: 20A @ 12V DC / 15A @ 24V DC
- Dimensions (H x W x D) – 3.75″ x 2.25″ x 3″
- Weight – .25lb
In the Box:
- Panel Mount AGC/MDL Fuse Holder (P/N 5021)
- Contura III Switch SPDT – On – OFF – (ON) (P/N 7944)
- Black 60 Label Set (P/N 8214)
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Action = on - off - auto | Color = Black/Grey | Throw/Pole = SPDT
