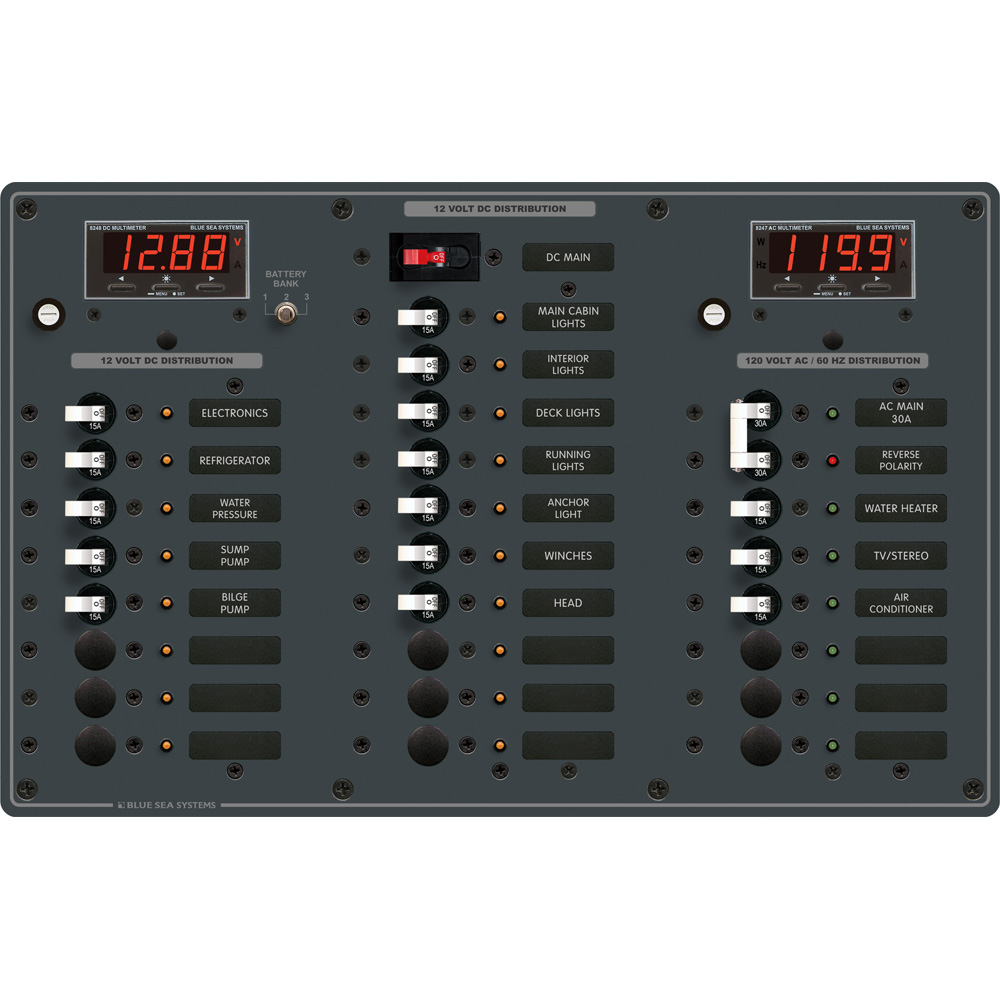

Blue Sea 8408 AC Main + 6 Positions / DC Main + 18 Positions

20832
Blue Sea Systems

$1981.09 $1235.15

0 in stock
Qty :

Description

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

  • (1) 30A
  • (3) 15A
  • (1) 8247 AC Digital Multimeter w/ Alarm
  • Installed DC Breakers

  • (1) 100A Main
  • (12) 15A
  • (1) 8248 DC Digital Multimeter w/ Alarm
    • 120V AC
    • 12/24V DC
    • All AC and DC buses installed and fully pre-wired
    • Label backlighting pre-installed
    • ON – indicating LEDs installed in all circuit positions
    • 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
    • Maximum panel amperage – 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8″ aluminum 5052 alloy
    • Detailed installation instructions and cutout template included
    • Countersunk mounting holes throughout
    • Includes set of 60 common AC and DC Large Format Labels
    • Over 500 individual labels available

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Quick Guide Litreture

    Owner Manual

    Brochure Litreture

    Voltage = 120/12/24v | Waterproof = NONE | Max Breaker Quantity = 6 AC / 18 DC | AC/DC = AC | Waterproof Rating = NONE

    Additional information

    Weight 10.3 lbs
    Dimensions 22 × 15 × 7 in
    Model Number 8408
    UPC 632085084080
