Description

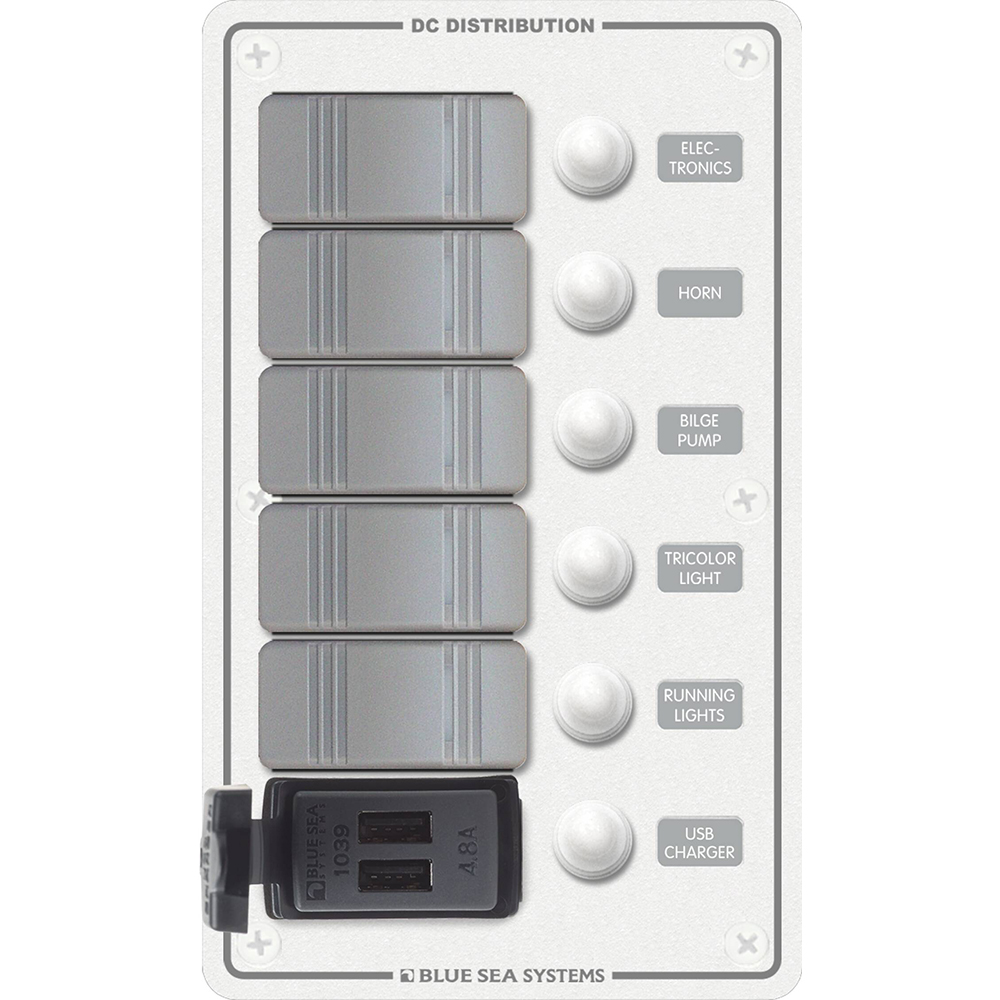

8421 – 5 Position Contura Switch Panel with Dual USB Chargers – 12/24V DC – White
Designed for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats.
Features:
- Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate
- Designed for 12 or 24V DC systems
- Watertight mounting gasket
- ON indicating LEDs embedded in all switches
Technical Specifications:
- Nominal Voltage – 12/24V DC
- Operating Current – 18mA per switch
- Switch Rating – 20A@12V and 15A@24V DC
- USB – 12/24V Dual USB Charger 4.8A
- Dimensions (H x W x D) – 7.5″ x 4.5″ x 3.25″ (190.5 x 133.35 x 76.2mm)
In the Box:
- 8421 Panel
- Labels
- Mounting hardware
*Sold as Individual
AC/DC = NONE | Max Breaker Quantity = NONE | Voltage = NONE | Waterproof Rating = NONE | Waterproof = NONE
