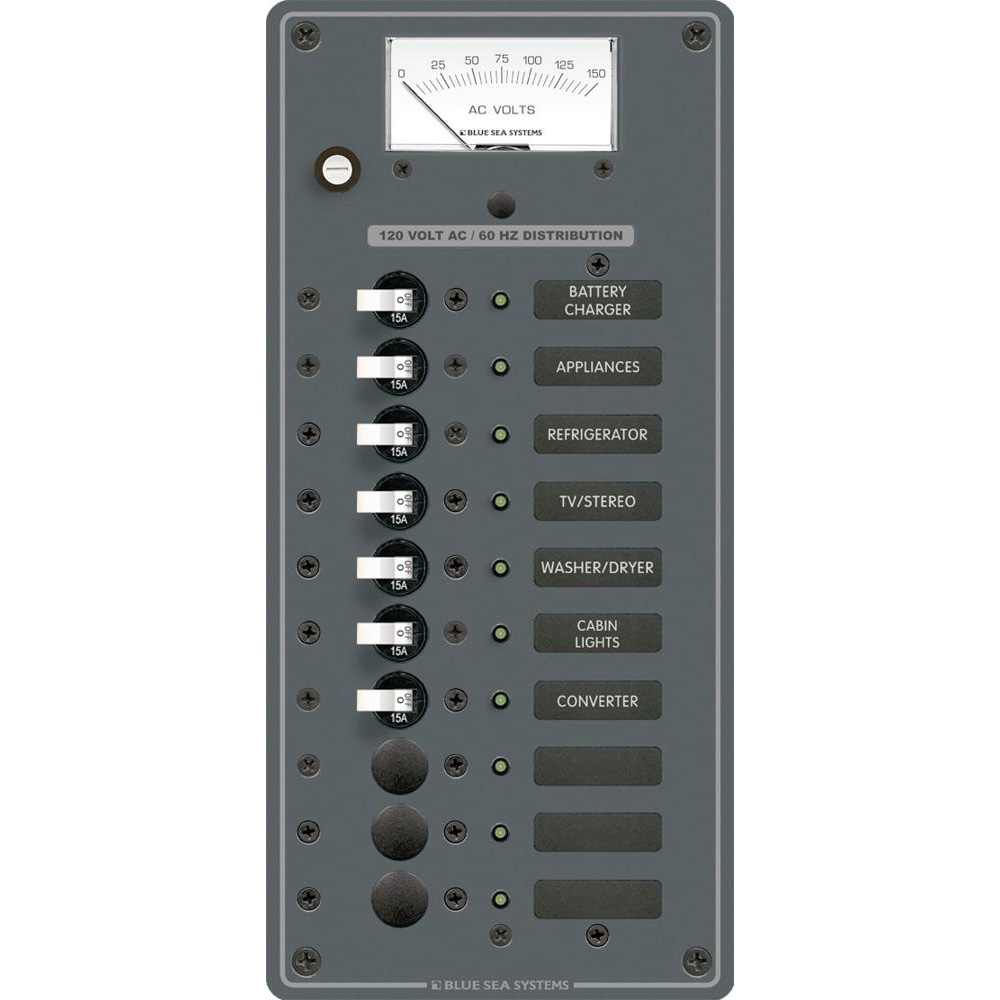

Blue Sea 8478 AC 10 Position

20857
Blue Sea Systems

$591.91 $350.29

0 in stock
Qty :

Description

AC 10 Position

  • (7) 15A Single Pole Circuit Breakers
  • (1) 9353 AC Analog Voltmeter
    • A-Series Circuit Breaker Panels
    • All hot, neutral, and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels – No kit required
    • “ON” indicating LEDs installed in all circuit positions
    • Maximum panel amperage – 100 Amperes
    • MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8″ aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual labels available

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Quick Guide Litreture

    Owner Manual

    Brochure Litreture

    Voltage = 120v | AC/DC = AC | Max Breaker Quantity = 10 | Waterproof = NONE | Waterproof Rating = NONE

    Additional information

    Weight 3.05 lbs
    Dimensions 12 × 9 × 5 in
    Model Number 8478
    UPC 632085084783
