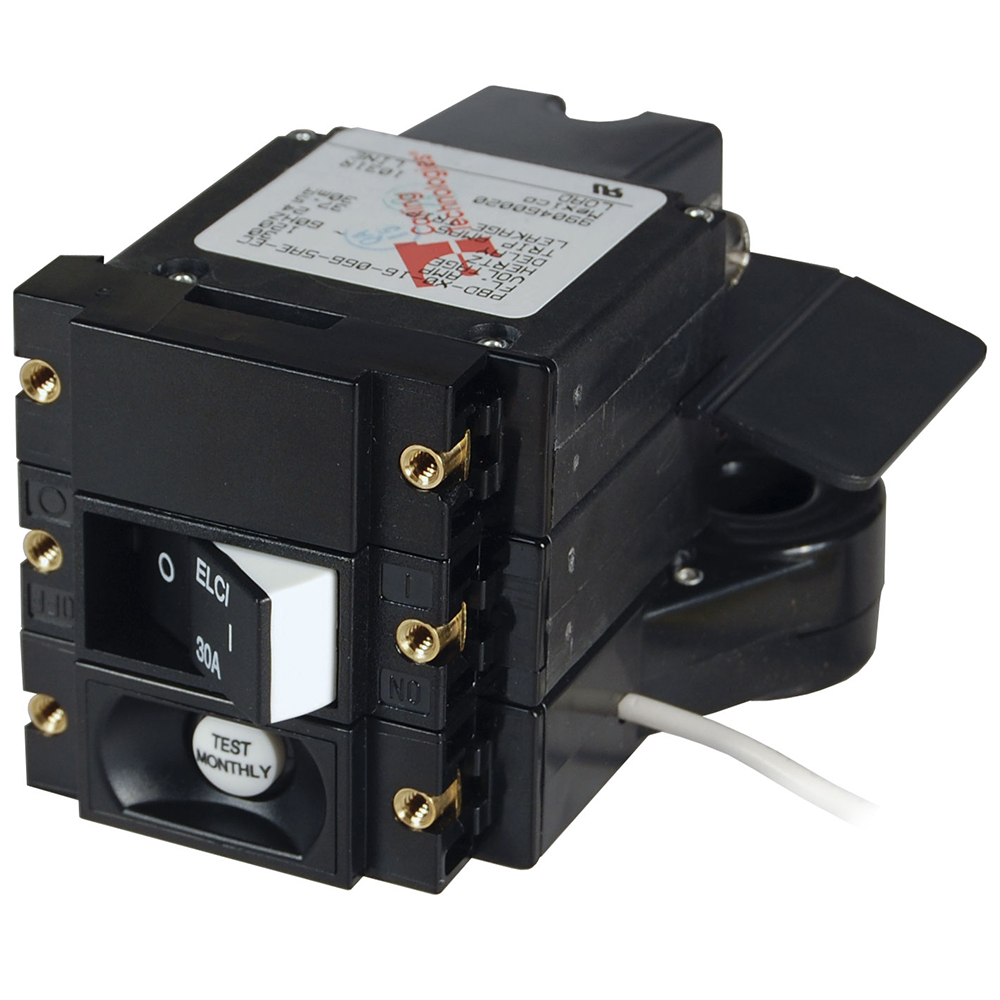

Blue Sea A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A – Flat Rocker

85022
Blue Sea Systems

$429.57 $287.15

24 in stock
Qty :

Description

A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A – Flat Rocker

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 30A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 240VAC/120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 65 degrees C
  • Leakage Trip Amps: 30mA

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Amperage = NONE

Additional information

Weight 0.8 lbs
Dimensions 7 × 4 × 4 in
Model Number 3102100
UPC 632085310219
