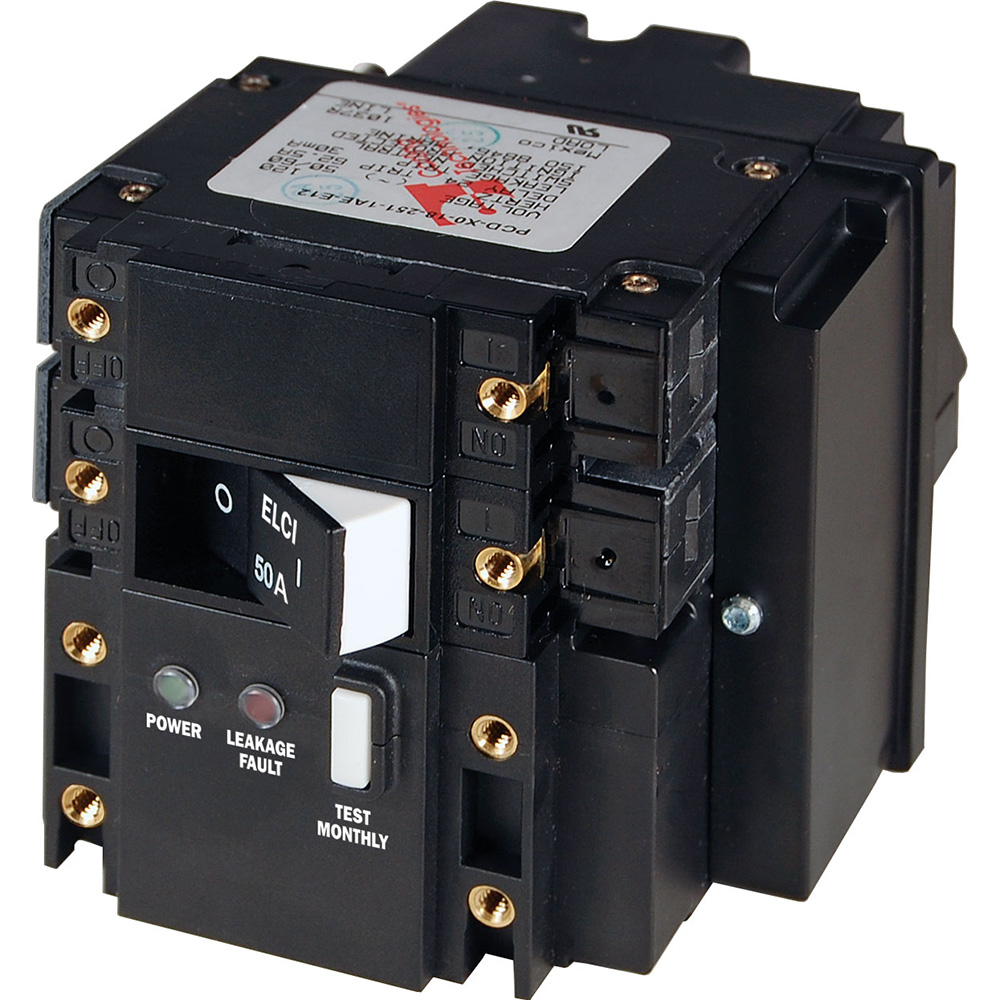

Blue Sea C-Series ELCI Circuit Breaker – Double Pole 240V AC 50A

99407
Blue Sea Systems

$722.51 $502.95

0 in stock
Qty :
,

Description

C-Series ELCI Circuit Breaker – Double Pole 240V AC 50A

Features:

  • Trips on short circuits, overloads, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Maximum Voltage: 120V AC per pole & 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic (trip free)
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35° C
  • Maximum Operating Temperature: 66° C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 1.20 lb. (0.54 kg)

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Brochure Litreture

Amperage = 50a

Additional information

Weight 1.2 lbs
Dimensions 6 × 5 × 5 in
Model Number 3093
UPC 632085030933
