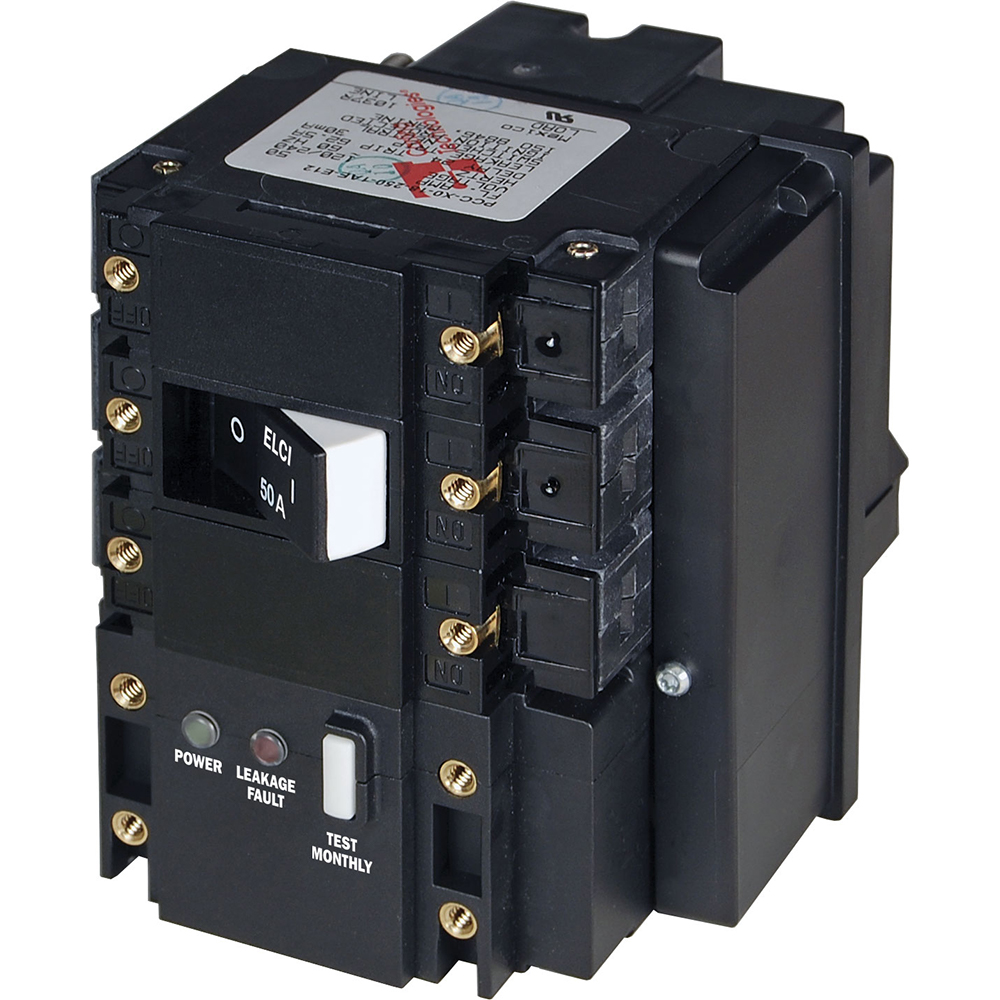

Blue Sea C-Series ELCI Main Circuit Breaker – 120/240V AC 50A

85024
Blue Sea Systems

$661.83 $460.25

2 in stock
Qty :
,

Description

C-Series ELCI Main Circuit Breaker – 120/240V AC 50A

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 3
  • Ignition Protected: Yes
  • Max Voltage: 120VAC per pole/240VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Amperage = NONE

Additional information

Weight 1.5 lbs
Dimensions 3 × 2 × 2 in
Model Number 3104
UPC 632085031046
