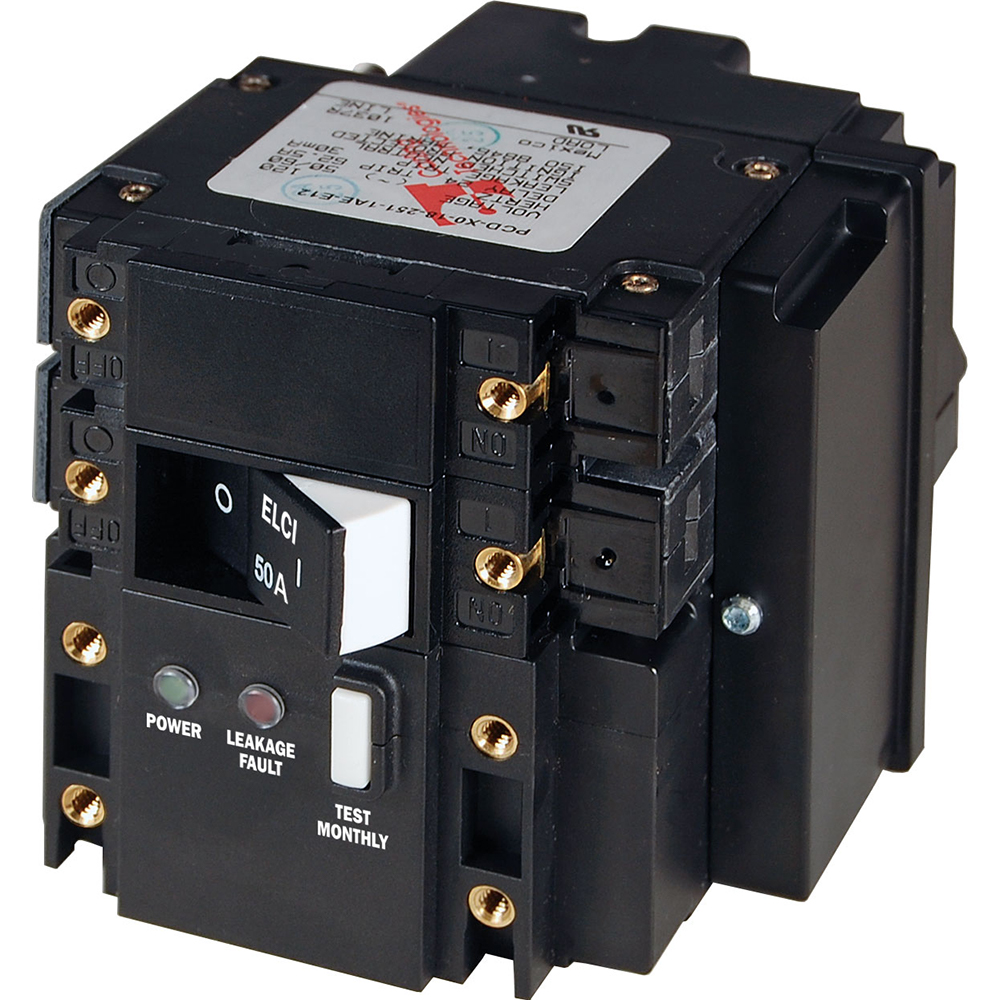

Blue Sea C-Series ELCI Main Circuit Breaker – Double Pole 120V AC 50A

85023
Blue Sea Systems

$591.45 $396.61

0 in stock
Qty :
,

Description

C-Series ELCI Main Circuit Breaker – Double Pole 120V AC 50A

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA

Amperage = NONE

Additional information

Weight 1.2 lbs
Dimensions 6 × 5 × 5 in
Model Number 3103
UPC 632085031039
