Description

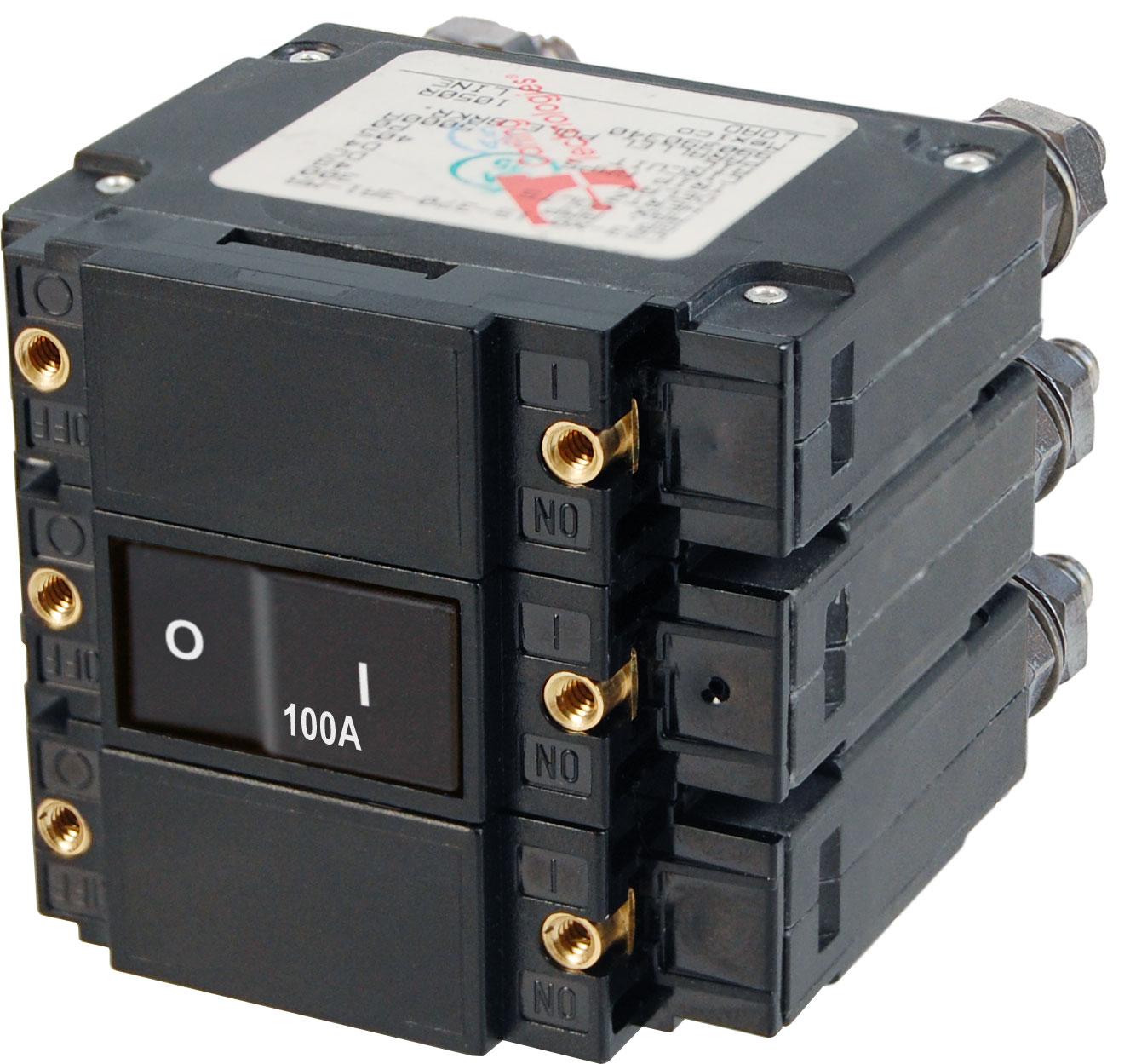

Blue Sea Systems C-Series Flat Rocker Circuit Breaker – Triple Pole 100A AC
Model: 7568-BSS
- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt main protection
- Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
- Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
- Circuit breakers will trip all poles if any one pole trips
- “Trip Free” design cannot be held “ON” during fault current condition
Specifications
| Amperage | 100A AC |
| Actuator Style | Flat Rocker |
| Poles | 3 |
| Maximum Voltage | 120V AC / 240V AC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.93lb (0.42 kg) |
