Blue Sea m-LVD Low Voltage Disconnect 12vDC

BSS7635
Blue Sea Systems

$115.80 $66.02

5 in stock
Qty :

Description

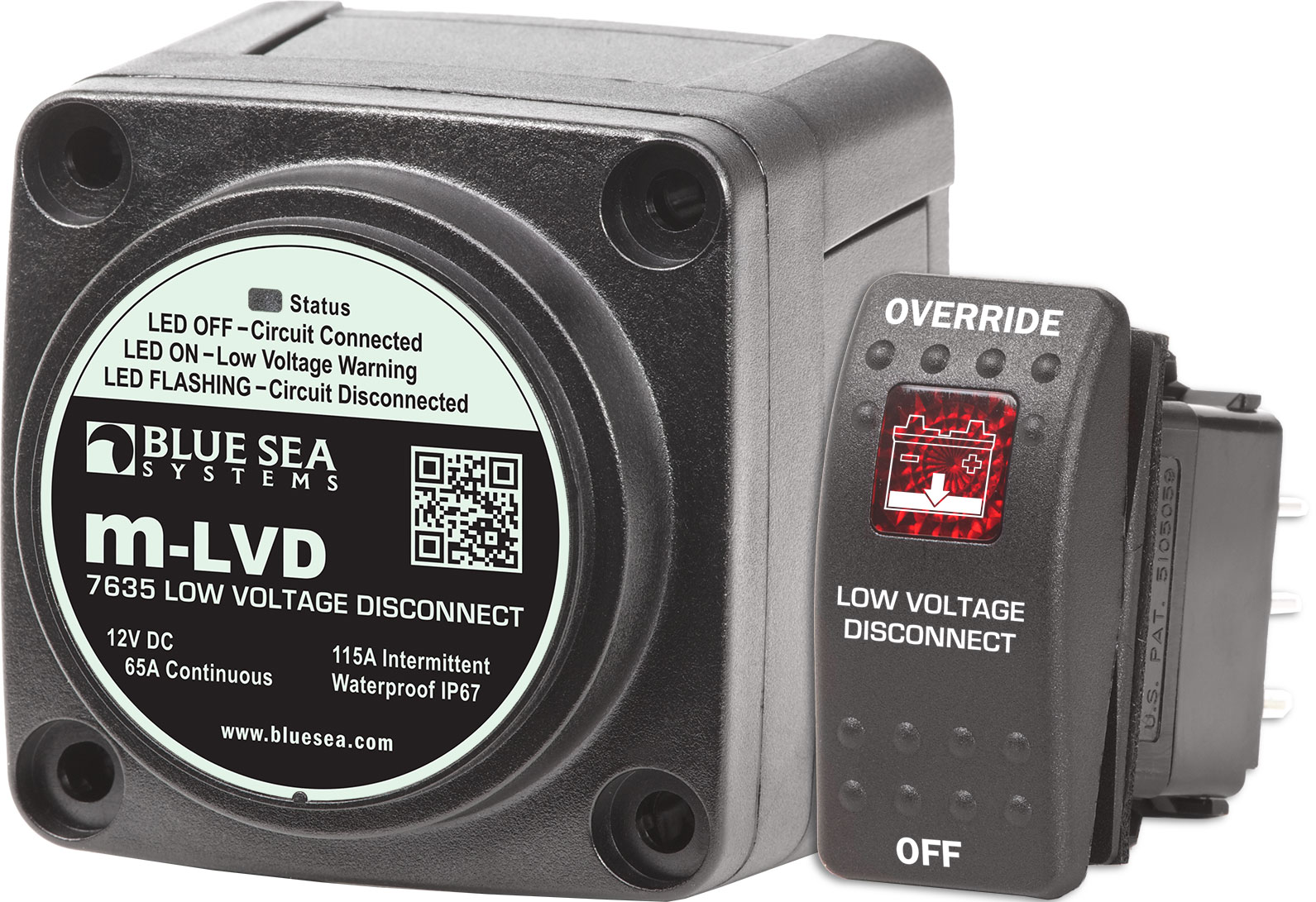

Blue Sea Systems m-LVD Low Voltage Disconnect

Model: 7635-BSS

  • Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life

A dead battery is one of the most common reasons for a tow. Don’t get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Specifications

Nominal Voltage 12V DC
Amperage Operating Current 95mA (Connected)
4mA (Open)
Terminal Stud Torque 60 in-lb (6.78 Nm)
Continuous Rating 65A
Intermittent Rating 115A (5 Min)
Maximum Cable Size 1/0 AWG (50mm2)
Stud Material Tinned Brass
Terminal Stud Length 7/16 in (11.11 mm)
7/16 in (11.11 mm) 1/4″ – 20 (M6)

What’s in the Box:

  • M-LVD Low Voltage Disconnect
  • m-LVD Switch

Additional information

Weight 1.00 lbs
Model Number 7635-BSS
UPC 632085076351
