Description

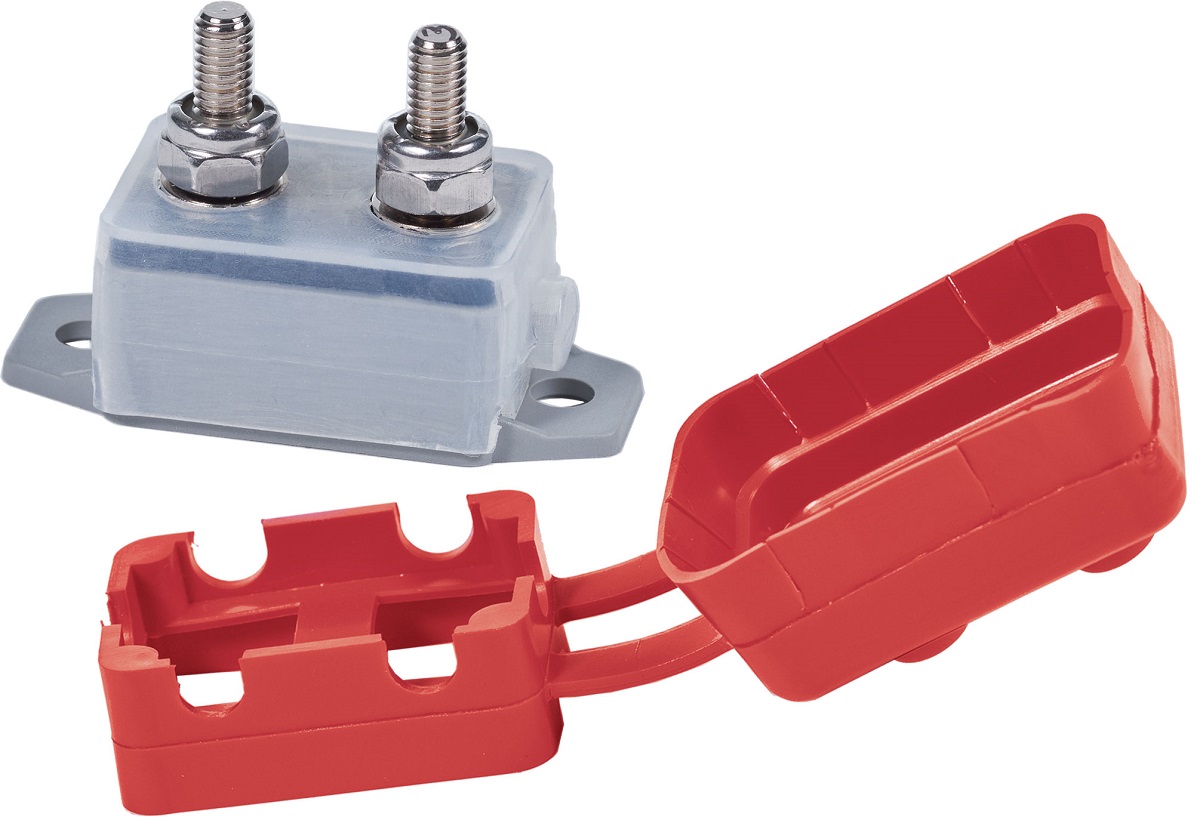

Blue Sea Systems Marine Grade Short Stop Circuit Breakers – 25A
Model: 7154-BSS
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts for secure connections
- Red insulating boot included (retail product only)
Specifications
| Amperage | 25A DC |
| Maximum Voltage | 28vDC |
| Circuit Breaker Type | Thermal trip, manual reset |
| Terminal Stud | #10-32 |
| Terminal Stud Torque | 20 in-lb (2.26 Nm) |
| Interrupt Capacity | 2500A @ 28V DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
What’s in the Box:
- 25A Short Stop Circuit Breaker
- Short Stop Circuit Breaker Boot
