Description

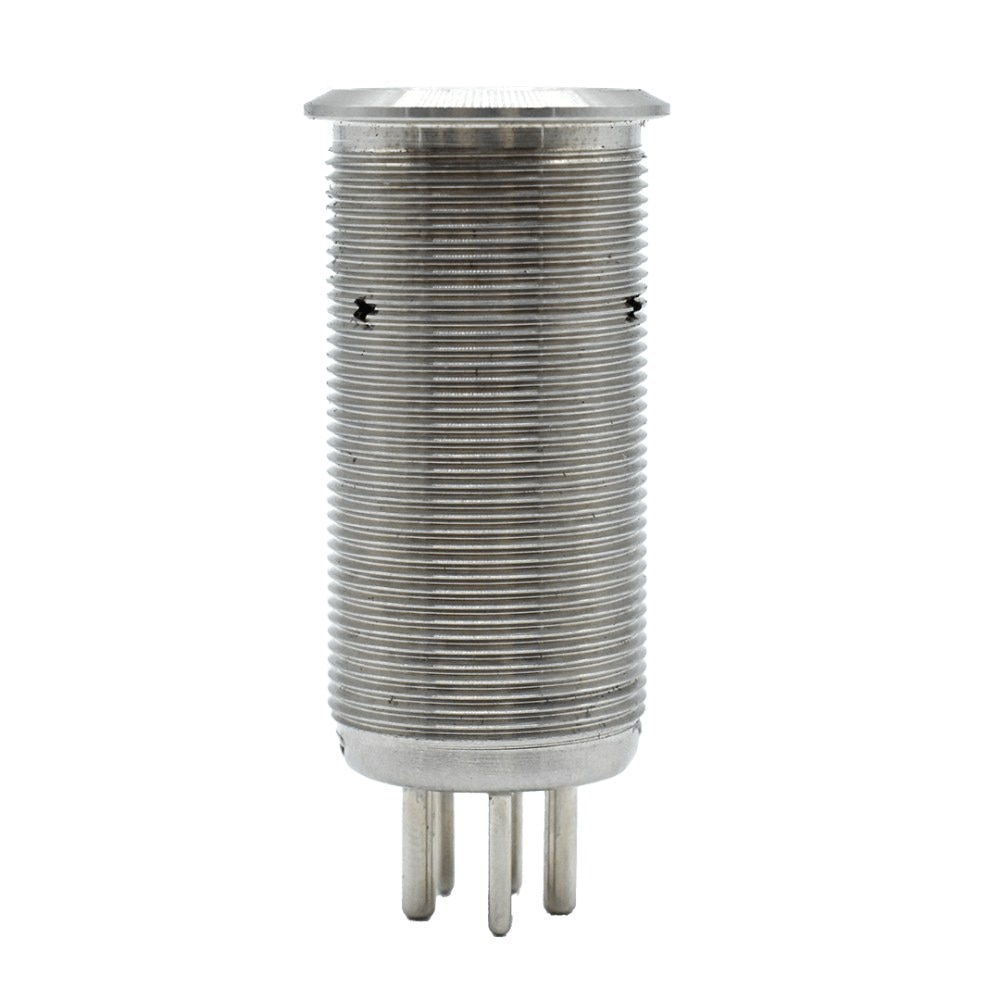

Bluewater 19mm Electronic Ground Switch, Latching On/Off
Model: 9057-1173
- Ground Switching — Latching On/Off switch that controls the ground (negative) side of the circuit.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-1173 is a 19mm electronic ground switch with latching On/Off operation, for circuits where the negative side is switched.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications
| Function | Ground (negative-side) switching, latching On/Off |
| Voltage | 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
