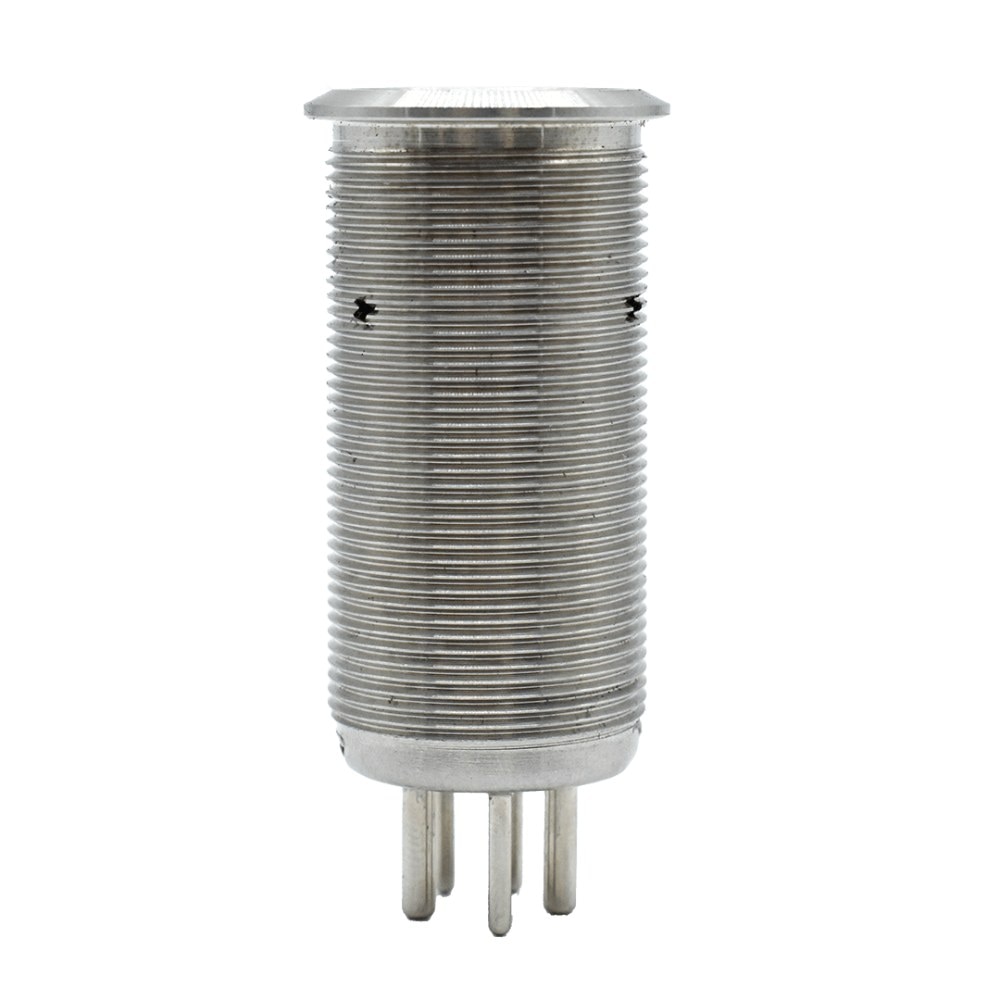

Bluewater 19mm Electronic Momentary Horn Switch, Red LED

Bluewater 19mm Electronic Momentary Horn Switch, Red LED

BWE90572213
Bluewater Enterprises

$48.10

(MRP Pricing)

0 in stock
Qty :
,

Description

Bluewater 19mm Electronic Momentary Horn Switch, Red LED

Model: 9057-2213

  • Horn Switch — Momentary action sounds the horn only while pressed.
  • Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
  • IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
  • SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
  • Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-2213 is a 19mm momentary switch dedicated to horn circuits, with red LED indication.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function Off-(On) momentary horn switch
LED Indicators Red
Voltage/Current 15A @ 12–24VDC
Protection Rating IP69K
Mounting Hole 19mm, panels up to 6mm thick
Material Nickel-plated brass / SS316 stainless steel
Mechanical Life 50,000 cycles
Electrical Life 10,000 cycles
Connector Deutsch-style (19mm harness 9057-4914 sold separately)

Additional information

Weight 0.00 lbs
Model Number 9057-2213
UPC 810196330795
