Description

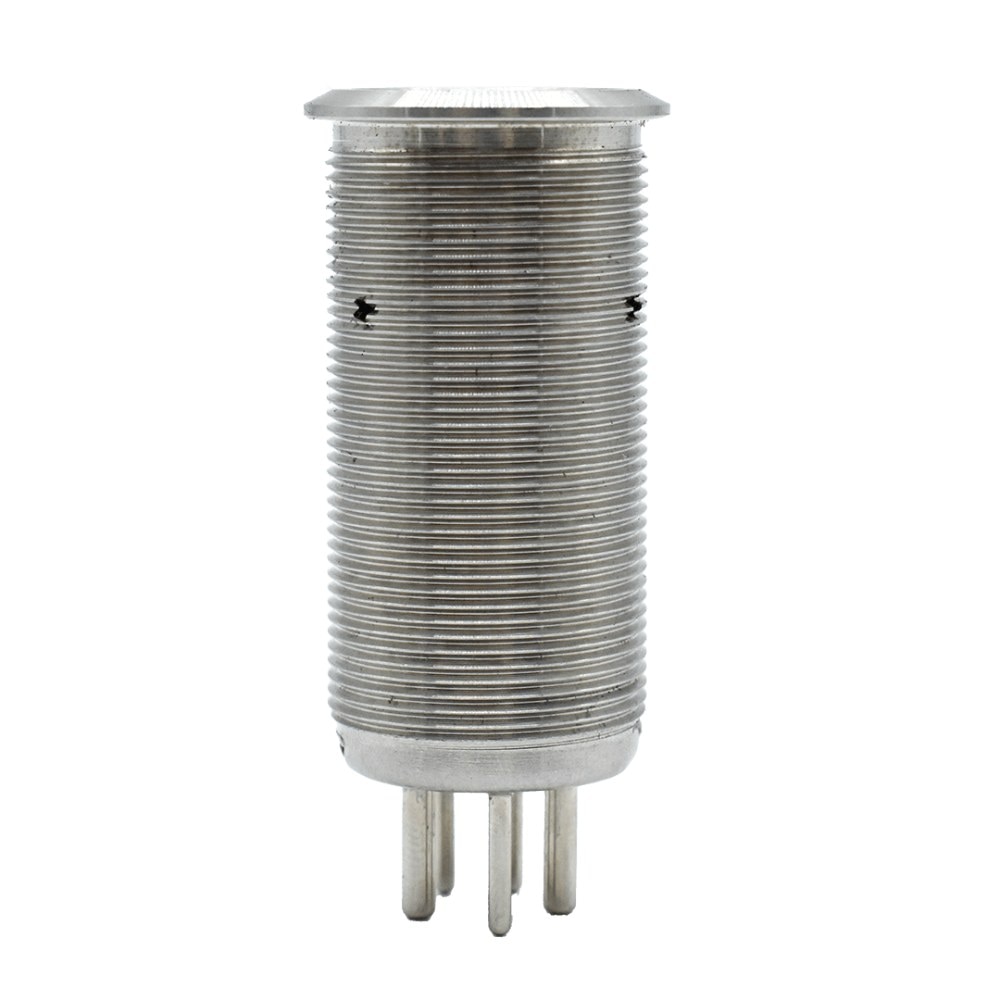

Bluewater 19mm Electronic Off-On-On Switch, Blue/Green/Red LED
Model: 9057-3113
- Two Loads, One Switch — First press turns on Load 1, second press switches to Load 2, third press turns both off.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-3113 controls two loads from a single 19mm push button, with a blue backlight when off, green for Load 1 and red for Load 2.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications
| Function | Off-On-On (latching, dual channel) |
| LED Indicators | Blue off / Green Load 1 / Red Load 2 |
| Voltage/Current | 7.5A per channel @ 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
