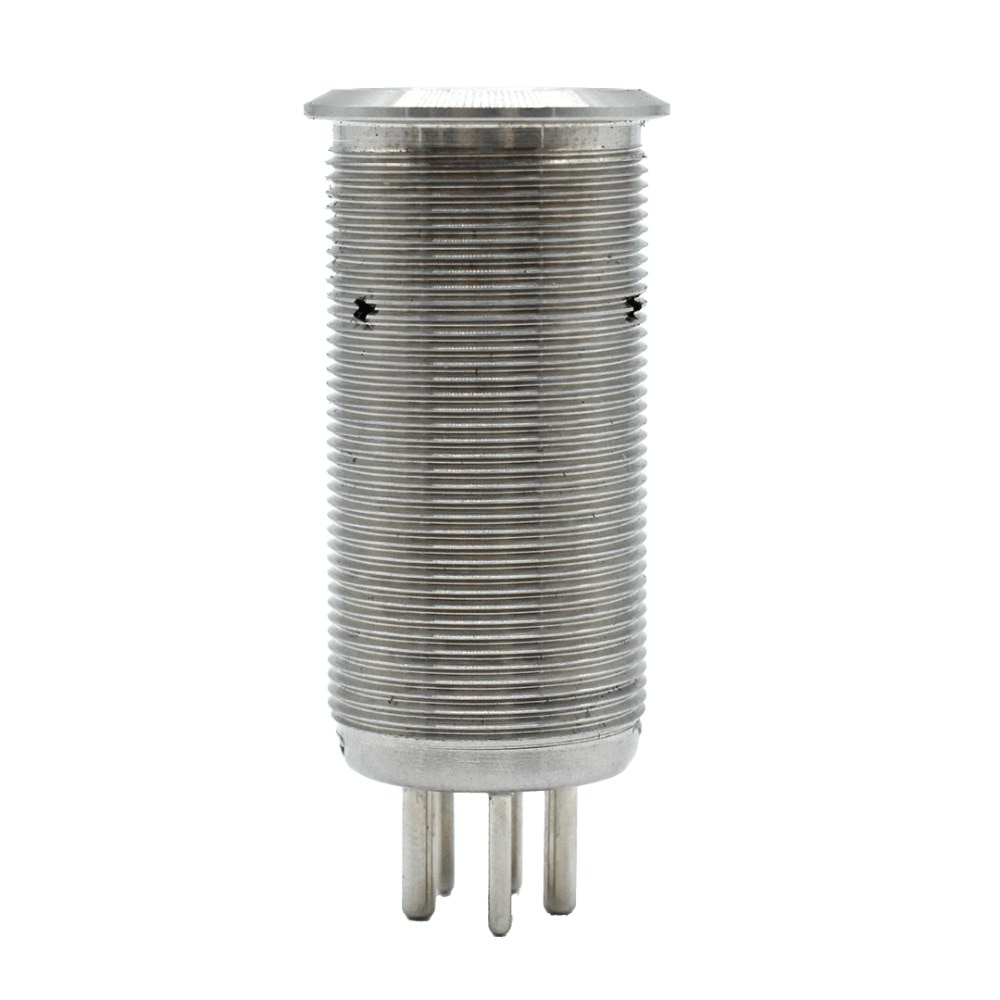

Bluewater 19mm Electronic Push Button Switch, Off/On, Blue/Red LED
Model: 9057-1113
- Latching Off/On — Push once for on, push again for off, with a blue backlight that turns red when active.
- Compact 19mm Design — Low-profile switch for tight dashboards and crowded panels.
- IP69K Waterproof — Sealed to withstand salt spray, washdowns and full submersion.
- SS316 Stainless Bezel — Corrosion-resistant construction for harsh marine environments.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.
The Bluewater 9057-1113 is a 19mm electronic Off/On push button switch that gives clear visual feedback: a soft blue backlight at rest and bright red when the circuit is on.
Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.
Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.
Specifications
| Function | Off-On (latching) |
| LED Indicators | Blue when off / Red when on |
| Voltage/Current | 15A @ 12–24VDC |
| Protection Rating | IP69K |
| Mounting Hole | 19mm, panels up to 6mm thick |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Connector | Deutsch-style (19mm harness 9057-4914 sold separately) |
