Description
Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED
Model: 9059-1113-10
- Latching Off/On — Push once for on, push again for off.
- Bright LED — Blue backlight for night visibility that shifts to bright red when the circuit is on.
- Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
- IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
- Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

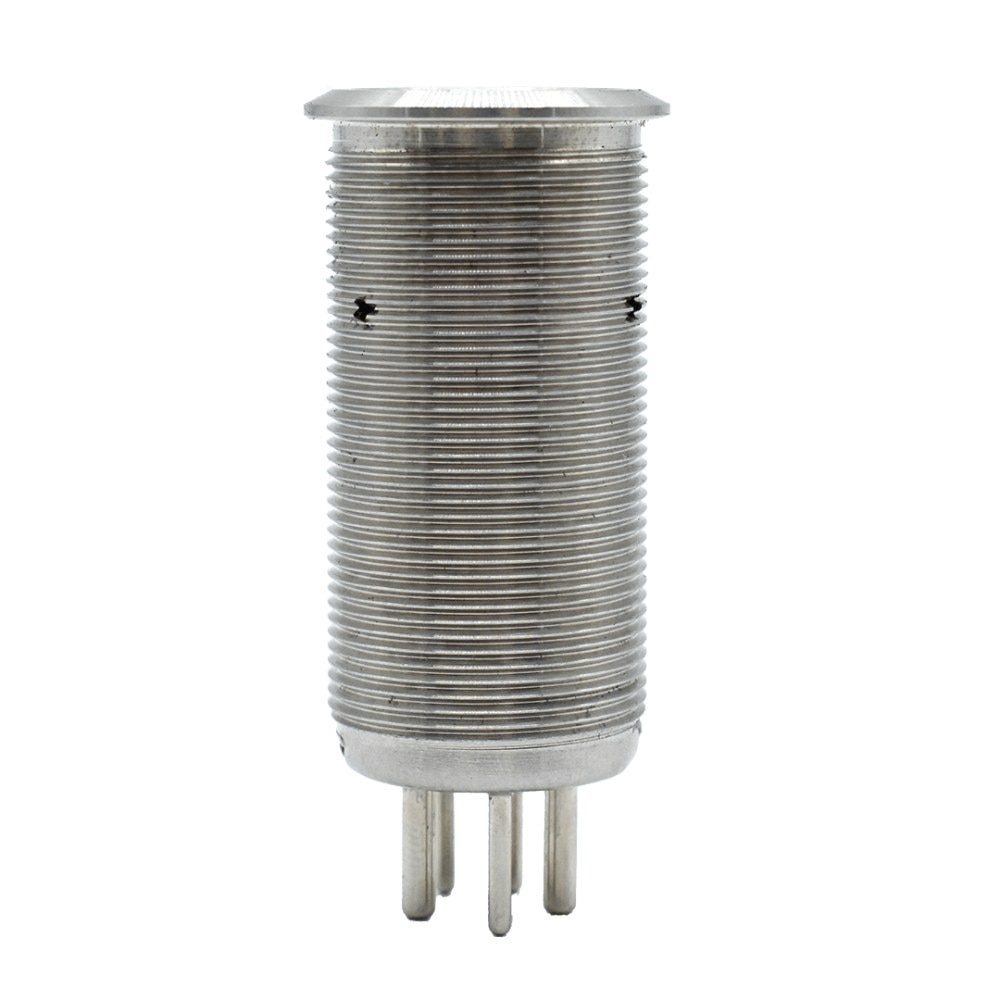

The Bluewater 9059-1113-10 is a 22mm electronic Off/On push button switch with inrush protection and a bright blue/red LED indicator.
The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.
Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.
Specifications
| Function | Off-On (latching) |
| LED Indicators | Blue off / Red on (bright) |
| Voltage/Current | 20A @ 12–24VDC |
| Inrush Rating | 120A for 120µs |
| Protection Rating | IP69K |
| Material | Nickel-plated brass / SS316 stainless steel |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Mounting Hole | 22mm |
| Connector | Deutsch-style (22mm harness 9053-3914 sold separately) |
