Description

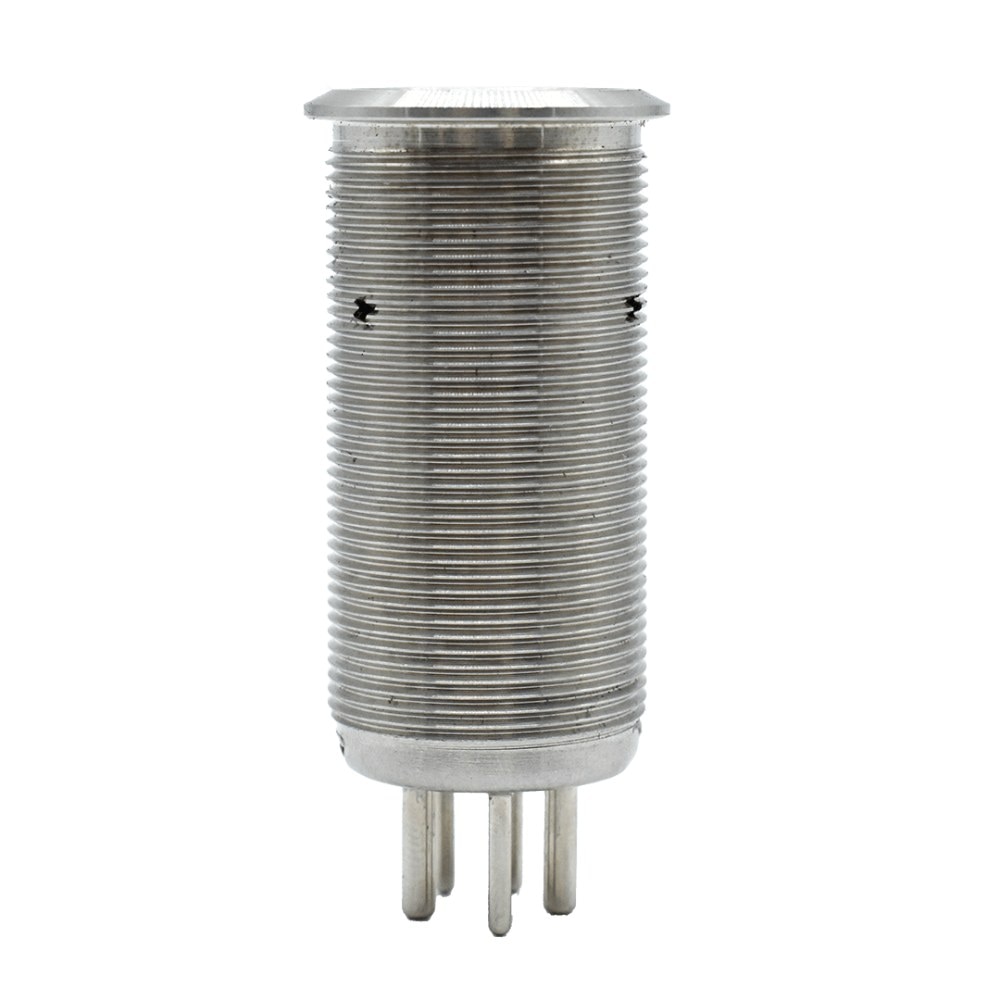

Bluewater 22mm Momentary Signal Switch for Digital Switching Systems

Model: 9059-2118

• Built for Digital Switching — Low-current signal switch for digital switching systems such as POCO, CZone and Garmin EmpirBus.
• Dry Contact Momentary — Press and hold to close the signal contacts; release to open.
• DayBright LEDs — Independent blue and red LEDs: blue ties to panel backlighting, red shows when the virtual switch is active.
• IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9059-2118 is a 22mm momentary signal switch that sends a low-current input to a digital switching system rather than powering a load directly. When the blue and red LEDs are both on, they combine to a purple glow.

Note: this is a signal-level switch with no built-in circuit protection. Do not use it to switch loads directly.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications
