Description

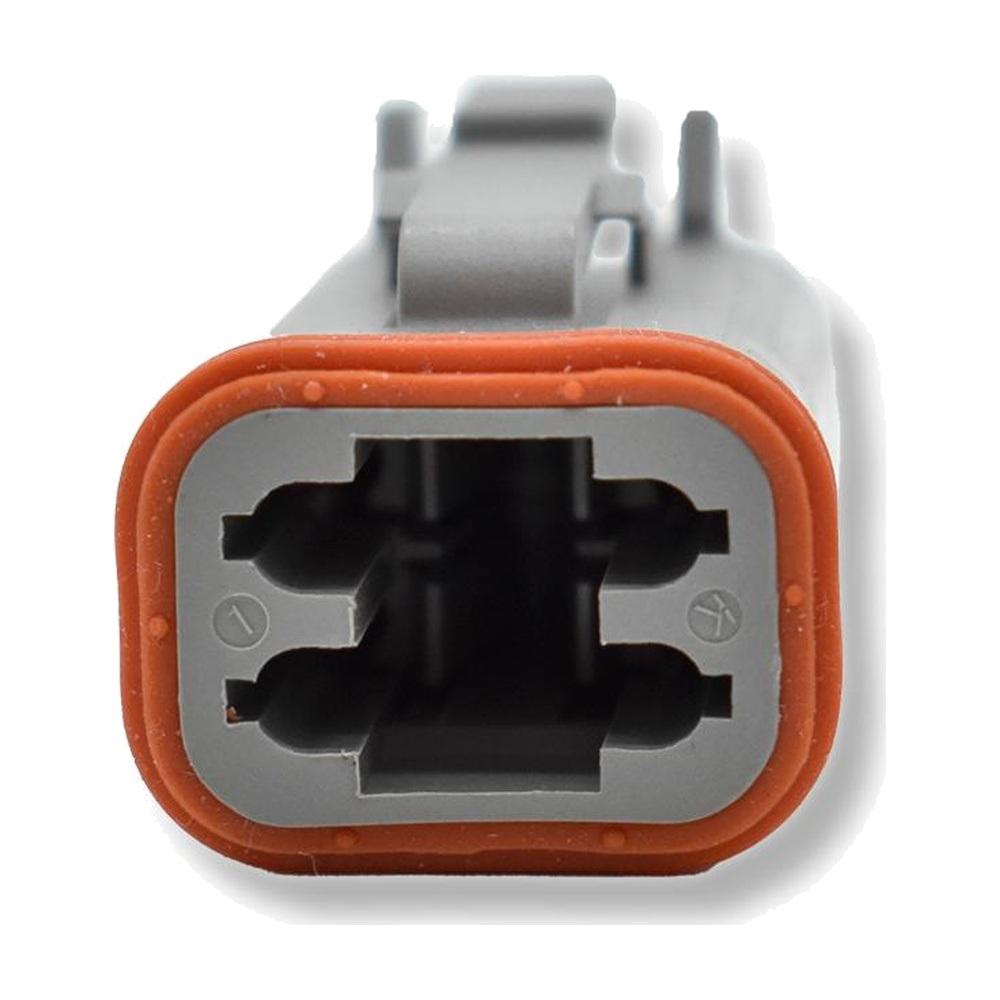

Bluewater 4 Position DT Female Connector with Wedge Lock, Deutsch Compatible
Model: DT06-4S
- 4-Cavity DT Plug — Female half of a 4-position DT connection; mates with the DT04-4P male receptacle.
- Deutsch Compatible — Fully interchangeable with matching Deutsch DT parts.
- 13A Per Contact — Delivers up to 13 amps continuously.
- Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
- Harsh-Environment Build — Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.
The Bluewater DT06-4S is a 4-position DT series female connector that forms a secure, weather-resistant connection with the matching DT04-4P male connector.
It’s ideal for marine, automotive and industrial wiring applications.
Specifications
| Series | DT (Deutsch compatible) |
| Positions | 4 |
| Gender | Female (plug) |
| Mates With | DT04-4P |
| Current Rating | 13A continuous per contact |
| Contacts | DT female, 14–16AWG (machined or stamped and formed crimp) |
| Wedge Lock | Included |
