Description

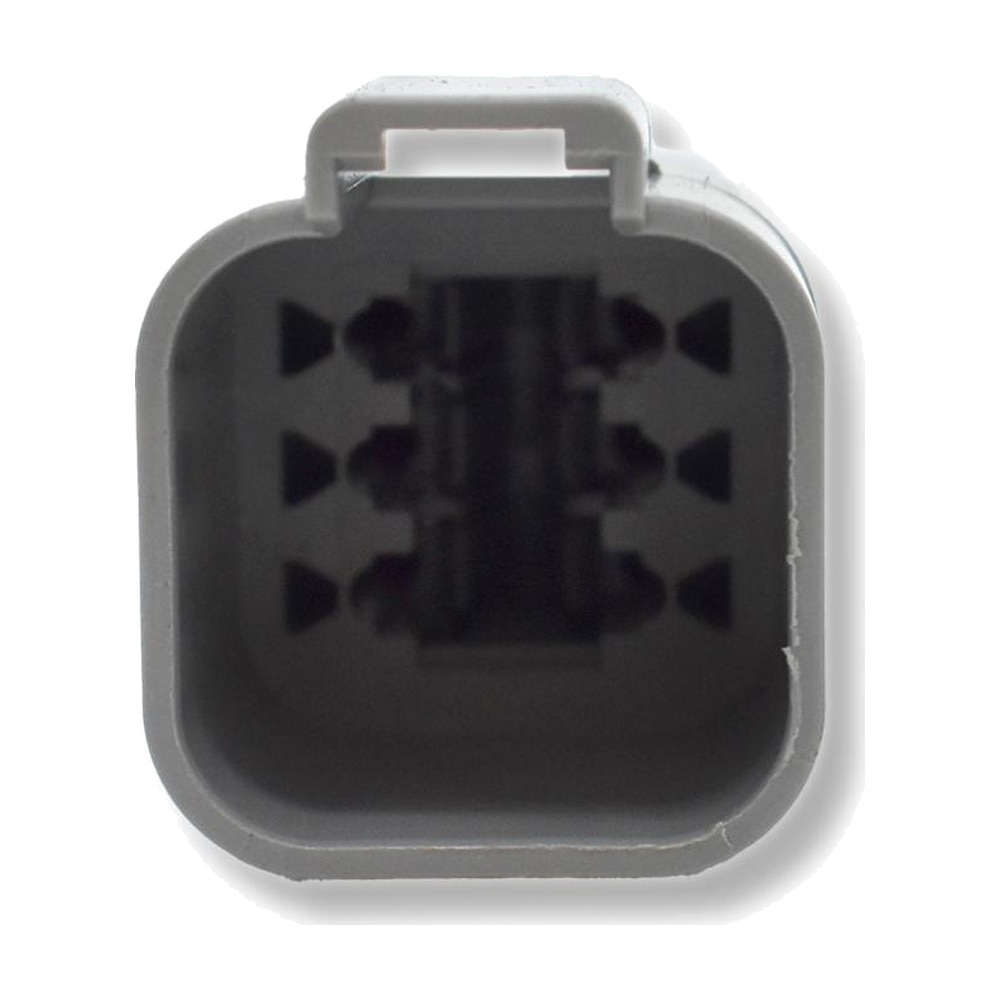

Bluewater 6 Position DT Male Connector with Wedge Lock, Deutsch Compatible
Model: DT04-6P
- 6-Cavity DT Receptacle — Male half of a 6-position DT connection; mates with the DT06-6S female plug.
- Deutsch Compatible — Fully interchangeable with matching Deutsch DT parts.
- 13A Per Contact — Delivers up to 13 amps continuously.
- Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
- Harsh-Environment Build — Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.
The Bluewater DT04-6P is a 6-position DT series male connector that forms a secure, weather-resistant connection with the matching DT06-6S female connector.
It’s ideal for marine, automotive and industrial wiring applications.
Specifications
| Series | DT (Deutsch compatible) |
| Positions | 6 |
| Gender | Male (receptacle) |
| Mates With | DT06-6S |
| Current Rating | 13A continuous per contact |
| Contacts | DT male, 14AWG (solid machined or stamped crimp) |
| Wedge Lock | Included |
