Description

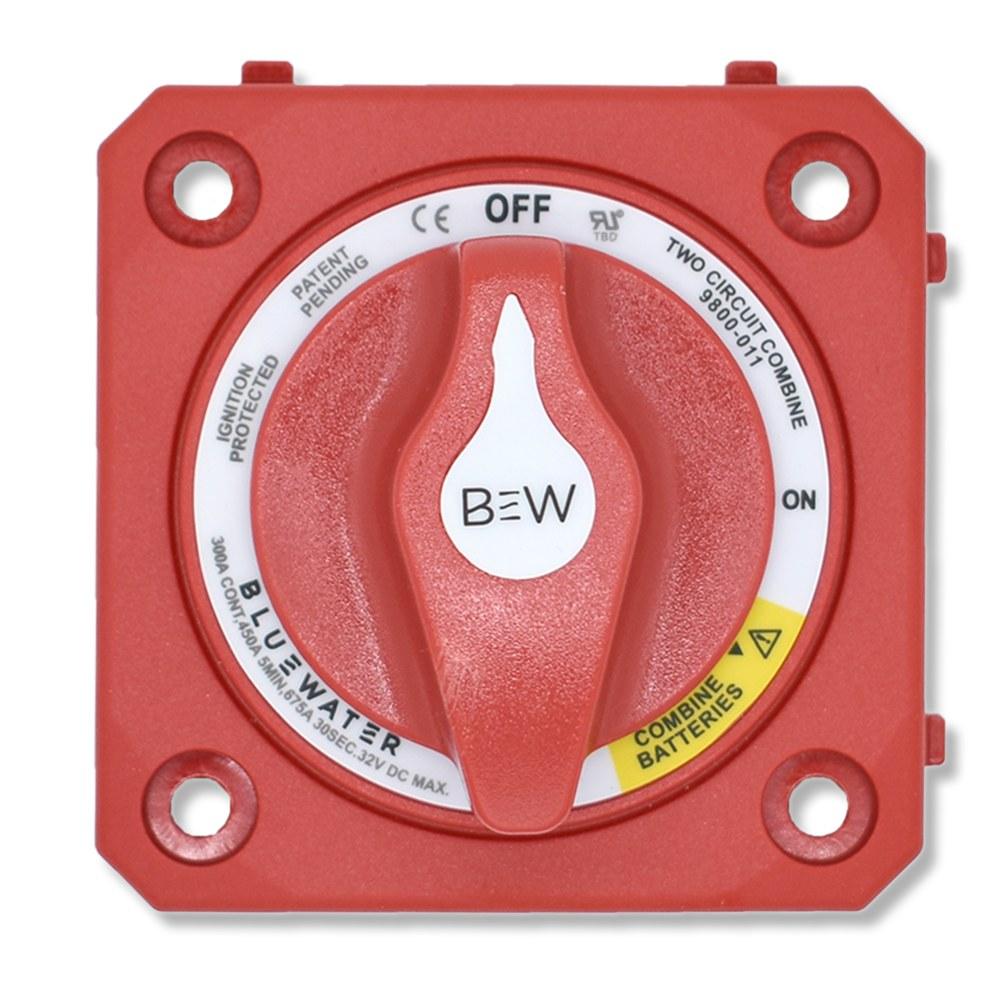

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Panel Mount, No Base, Red
Model: 9800-011-10
- Dual Circuit Isolation — Keeps start and house circuits separate during normal operation.
- Emergency Combine — Parallel mode links batteries for dependable backup starting power.
- Heavy-Duty Rating — 300A continuous, 450A intermittent and 675A cranking.
- Heavy-Duty Studs — 3/8″-16 tin-plated copper studs accept 3/8″ and M10 ring terminals, with 7/8″ stud length for multiple cables.
- Panel Mount — Supplied without a base for front or rear panel mounting.
The Bluewater Dual Circuit Plus switch builds on the standard dual circuit configuration by adding an emergency parallel (Combine) function. It’s ignition protected for gasoline-powered boats and suited to RV applications.
It’s built from non-corrosive marine-grade metals and reinforced polycarbonate, with tactile knob textures to confirm position by feel. International ON/OFF legends and an icon label set are included.
Specifications
| Positions | Off / On / Combine |
| Continuous Rating | 300A DC |
| Intermittent Rating | 450A DC (5 min) |
| Cranking Rating | 675A DC (30 sec) |
| Max Voltage | 32VDC |
| Studs | 3/8″-16 tin-plated copper, 7/8″ length |
| Cable Size | Up to 4/0 AWG |
| Mounting | Panel mount (no base) |
| Knob Color | Red |
