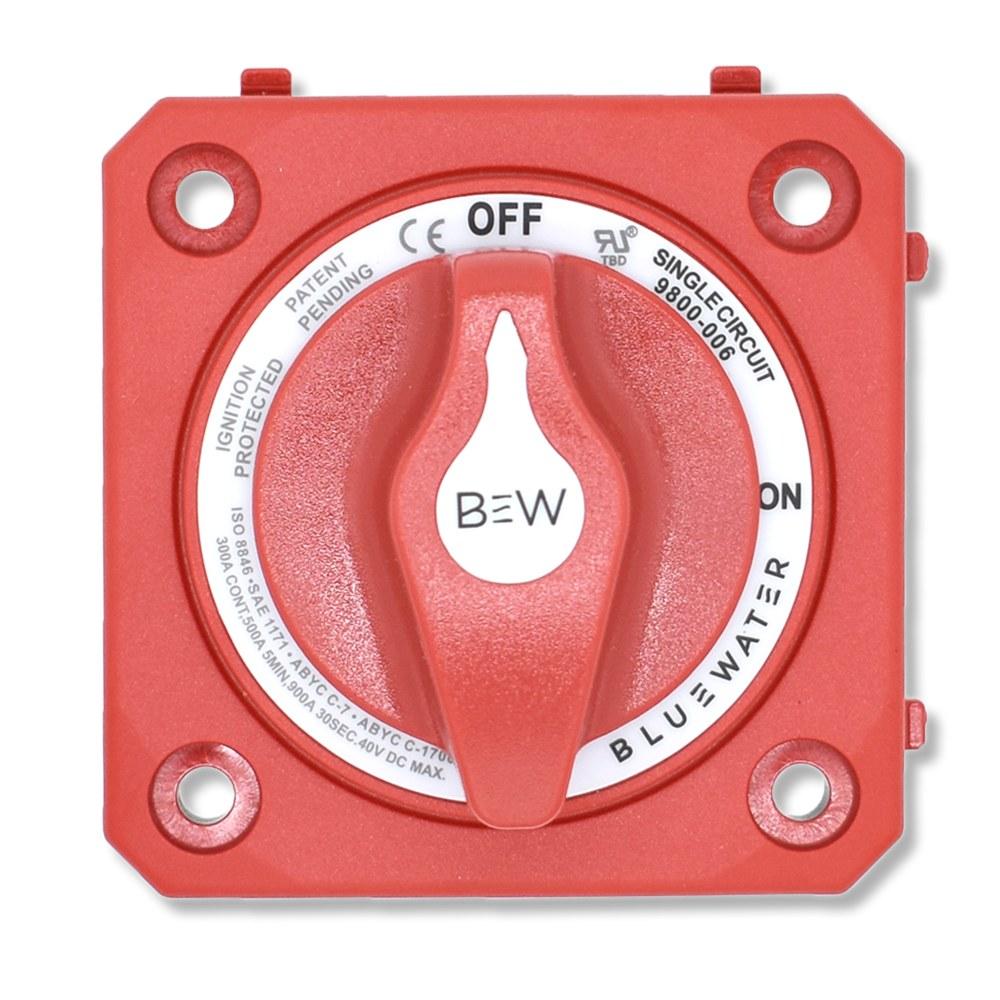

Bluewater On/Off Battery Switch, 300A, Panel Mount, No Base, Red
Model: 9800-006-10
- Single-Circuit Control — Isolates a battery or equipment when not in use to prevent battery drain.
- Heavy-Duty Rating — 300A continuous, 500A intermittent and 900A cranking.
- Ignition Protected — Safe for gasoline-powered boats.
- Panel Mount — Supplied without a base for front or rear panel mounting.
- Tactile Knob — Textured red knob lets you confirm the switch position by feel.
This Bluewater On/Off Battery Switch provides simple, secure control of power to a single circuit for marine and RV applications.
It’s built from non-corrosive marine-grade metals and reinforced polycarbonate, and includes an international ON/OFF label and icon label set.
Specifications
| Positions | On / Off |
| Continuous Rating | 300A DC |
| Intermittent Rating | 500A DC (5 min) |
| Cranking Rating | 900A DC (30 sec) |
| Max Voltage | 40VDC |
| Cable Size | Up to 4/0 AWG |
| Mounting | Panel mount (no base) |
| Ignition Protected | Yes |
| Knob Color | Red |
