Description

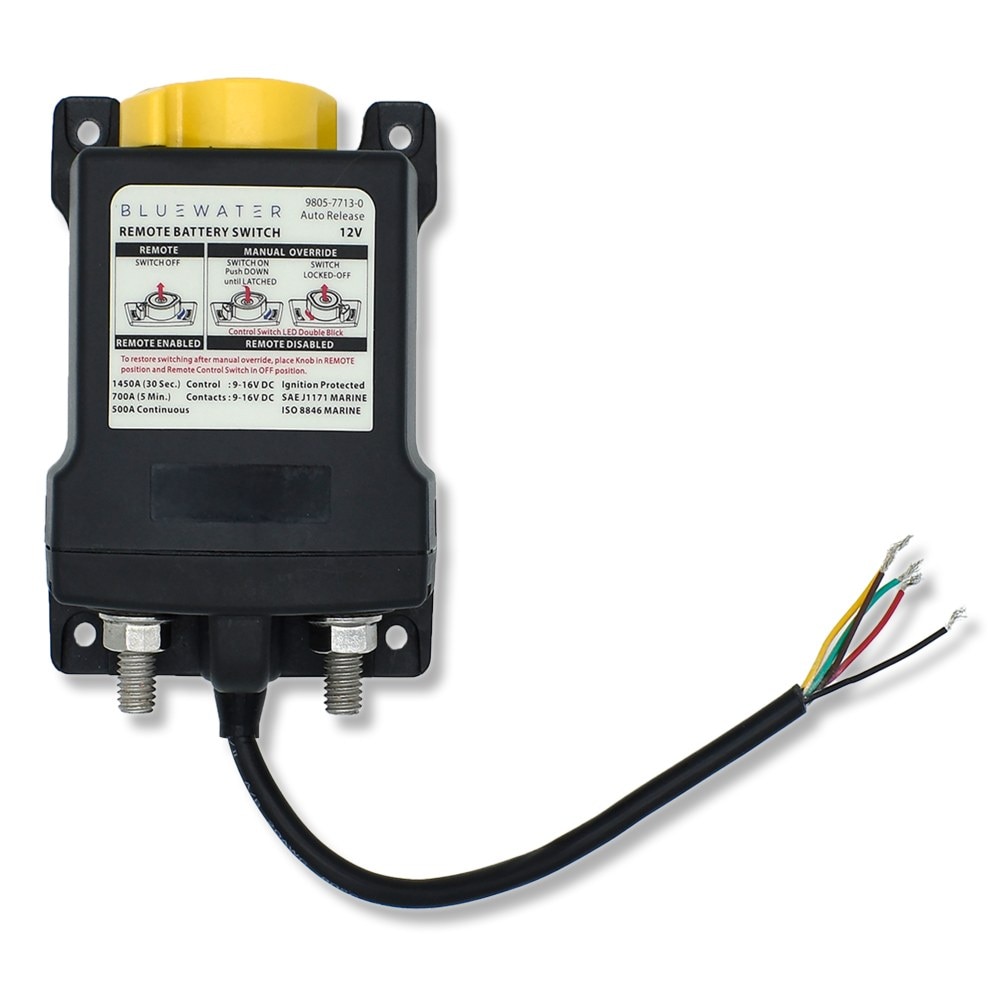

Bluewater Remote Solenoid Battery Switch, Auto Release, 12V
Model: 9805-7713-0
- Remote Battery Control — Turn battery power on or off from a helm or panel switch, ideal for long cable runs.
- Low Current Draw — Auto-release design draws very low continuous current.
- LED Status — Built-in indicators show whether the switch is on or off.
- Manual Override — Control knob with Lock Off function for emergency access.
- Heavy-Duty Studs — 3/8″-16 tin-plated copper studs with silver alloy contacts.
The Bluewater auto-release remote solenoid battery switch is a heavy-duty marine solenoid for remote activation of power circuits and battery isolation from a remote panel.
It can be controlled by an SPDT or SPST ON-ON switch, and the manual override provides emergency access.
Specifications
| Type | Auto-release remote solenoid |
| Control Voltage | 9–16VDC (12V systems) |
| Current Draw | Very low continuous current |
| Remote Control Switch | SPDT or SPST ON-ON |
| Terminal Studs | 3/8″-16 tin-plated copper |
| Contacts | Silver alloy |
| Status Indicator | LED |
| Manual Override | Yes, with Lock Off |
