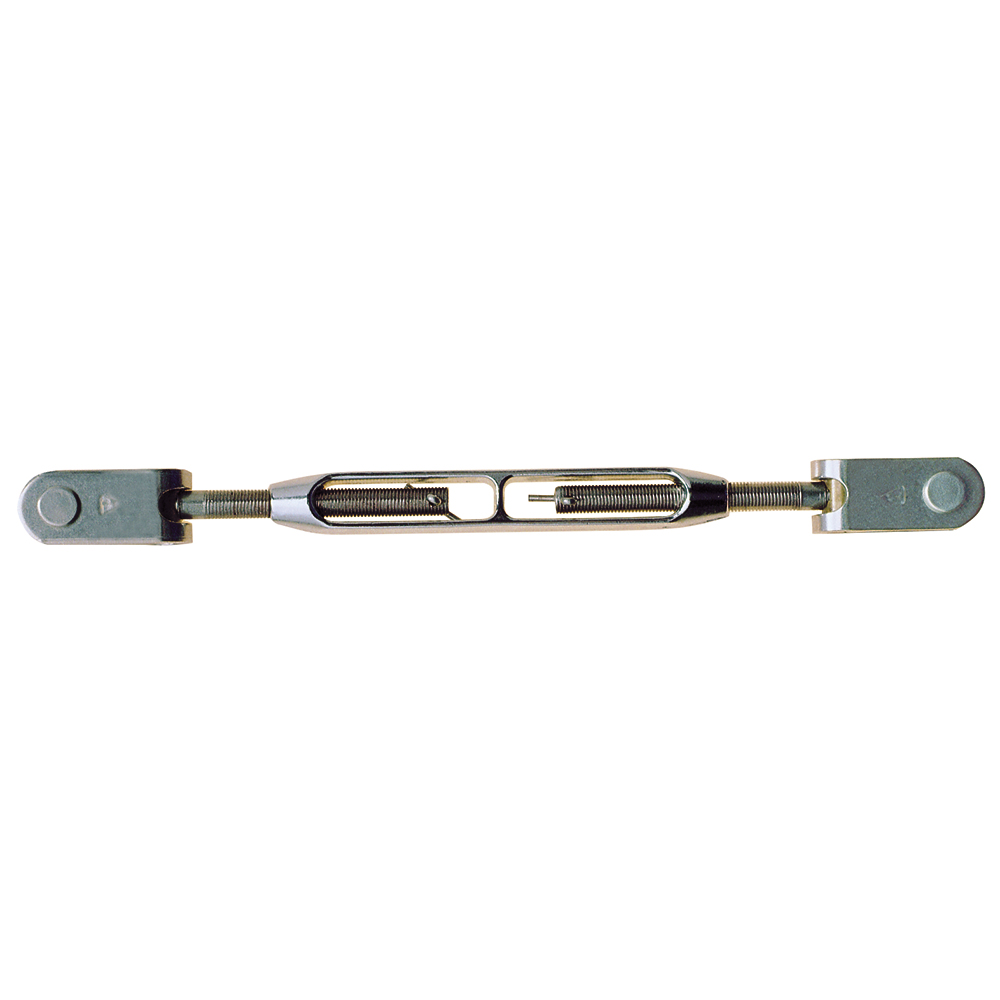

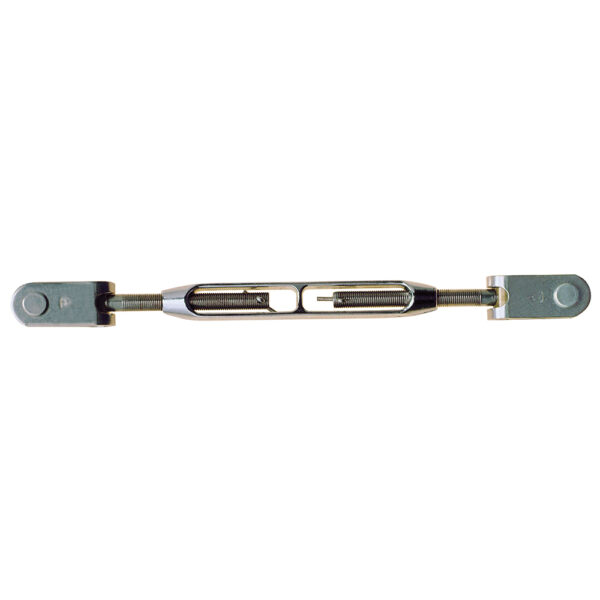

C. Sherman Johnson Jaw/Jaw Open Body Turnbuckle – 1/2-20 Thread

71534
C. Sherman Johnson

$216.50 $134.61

0 in stock
Qty :
,

Description

Jaw/Jaw Open Body Turnbuckle – 1/2-20 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

  • Machine swage
  • Bronze body/ 316 stainless ends
  • Wire size: 5/16″
  • Breaking strength: 10,500 pounds
  • Safe working load: 4,200 pounds
  • Thread size: 1/2-20
  • Pin to pin length: 11-1/2″ (closed) 15-1/2″ (open)
  • Body length: 6-1/2″
  • Pin diameter: 1/2″
  • Weight: 1 pound

Lifelines = No | Running Rigging = No | Standing Rigging = Yes | Track Size = NONE

Additional information

Weight 1.65 lbs
Dimensions 14 × 2 × 2 in
Model Number 45-100
