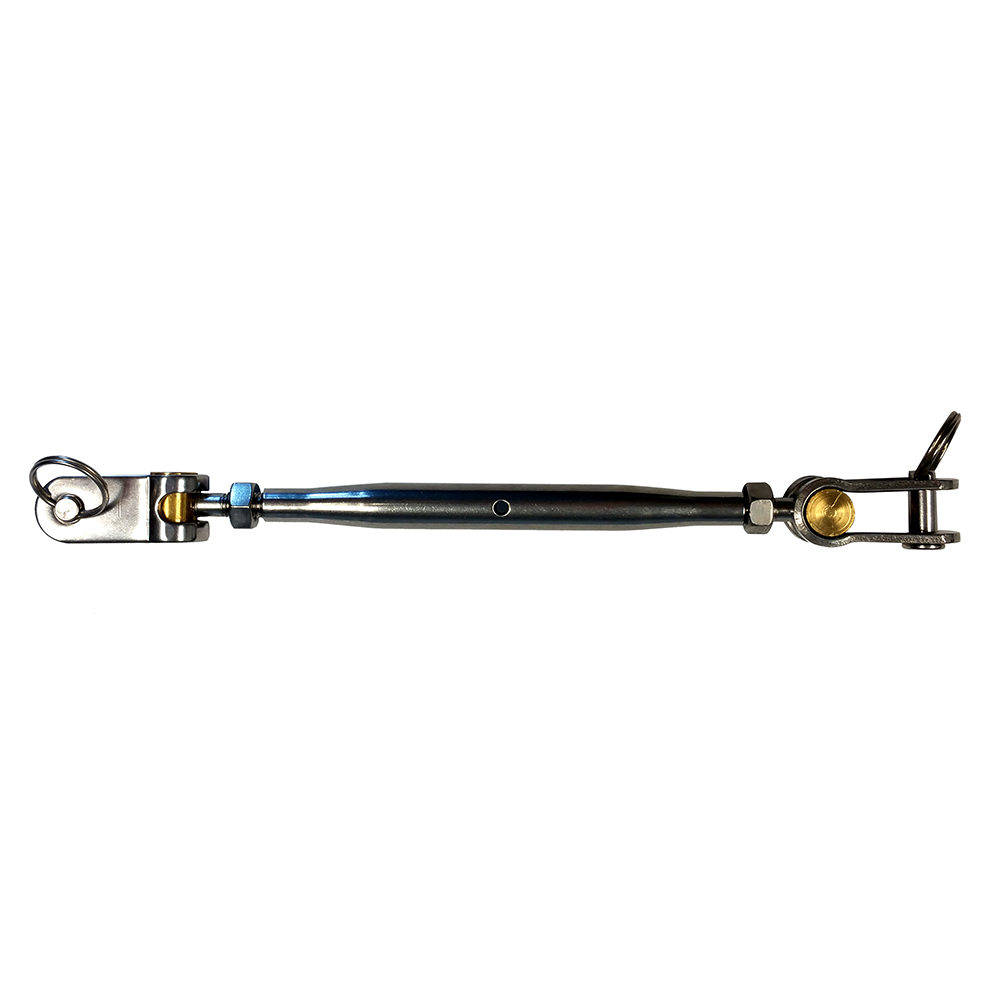

C. Sherman Johnson Jaw/Jaw Tubular Turnbuckle T-Style 5/16-24 Thread

71539
C. Sherman Johnson

$48.75 $30.31

2 in stock
Qty :
,

Description

Jaw/Jaw Tubular Turnbuckle T-Style 5/16-24 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

  • Jaw with “T” Toggle Construction
  • Machine swage
  • Bronze body/ 316 stainless ends
  • Wire size: 3/16″
  • Breaking strength: 4,000 pounds
  • Safe working load: 1,600 pounds
  • Thread size: 5/16-24
  • Pin to pin length: 9″ (closed) 12-3/4″ (open)
  • Body length: 5-1/8″
  • Pin diameter: 5/16″
  • Weight: 8 ounces

Lifelines = No | Running Rigging = No | Standing Rigging = Yes | Track Size = NONE

Additional information

Weight 0.4 lbs
Dimensions 10 × 1 × 1 in
Model Number 05-110
