Description

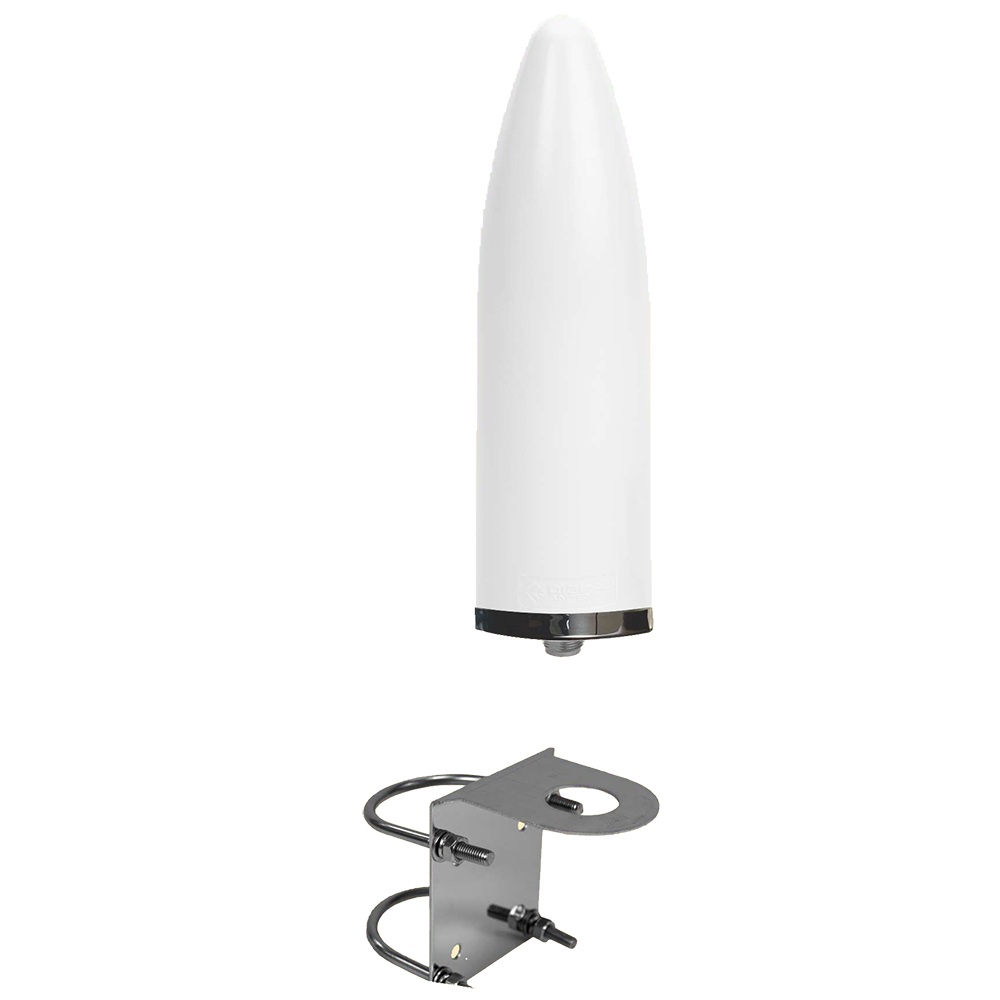

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket
Digital Antenna’s omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.
9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.
For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.
Available in 4 stainless steel mounting options: L-Bracket, 1″ x 14 Threads, Deck Mount, and Raised Deck Mount
REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.
Applications:
- Commercial
- Recreational
- Government
- Marine
- Land
Features:
- Maximum power for 4G, 5G, WiFi signals
- 9dBi omni-directional gain
- Rugged UV stable polyurethane finish
- Foam filled to withstand extreme vibrations
- 316 stainless steel base
- Includes L bracket & U-Bolts
- Weatherproof N female connector
- 5-year warranty
Specifications:
- Radiation Pattern Omni-Directional
- Gain 9dBi
- Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
- Cable Not Included
- Impedance 50 ohms
- Max Input Power 50 watts
- Exterior Finish White polyurethane high gloss UV stable
- Dimensions 8.875″ L x 2.375″ OD (225 x 60 mm
- Weight 15 oz
- RF Connector N type female
- Installation Stainless Steel L bracket for pole/wall
- Elements Copper – Hand soldered
- Polarization Vertical
- Wind Rating >160KPH
- Operating Temp 30º F to +175º F
- Warranty 5 Years
- Compliance RoHS compliant
