Digital Yacht GV30 VHF/AIS GPS Antenna

DIYZDIGGV30
Digital Yacht

$189.95 $142.11

2 in stock
Qty :

Description

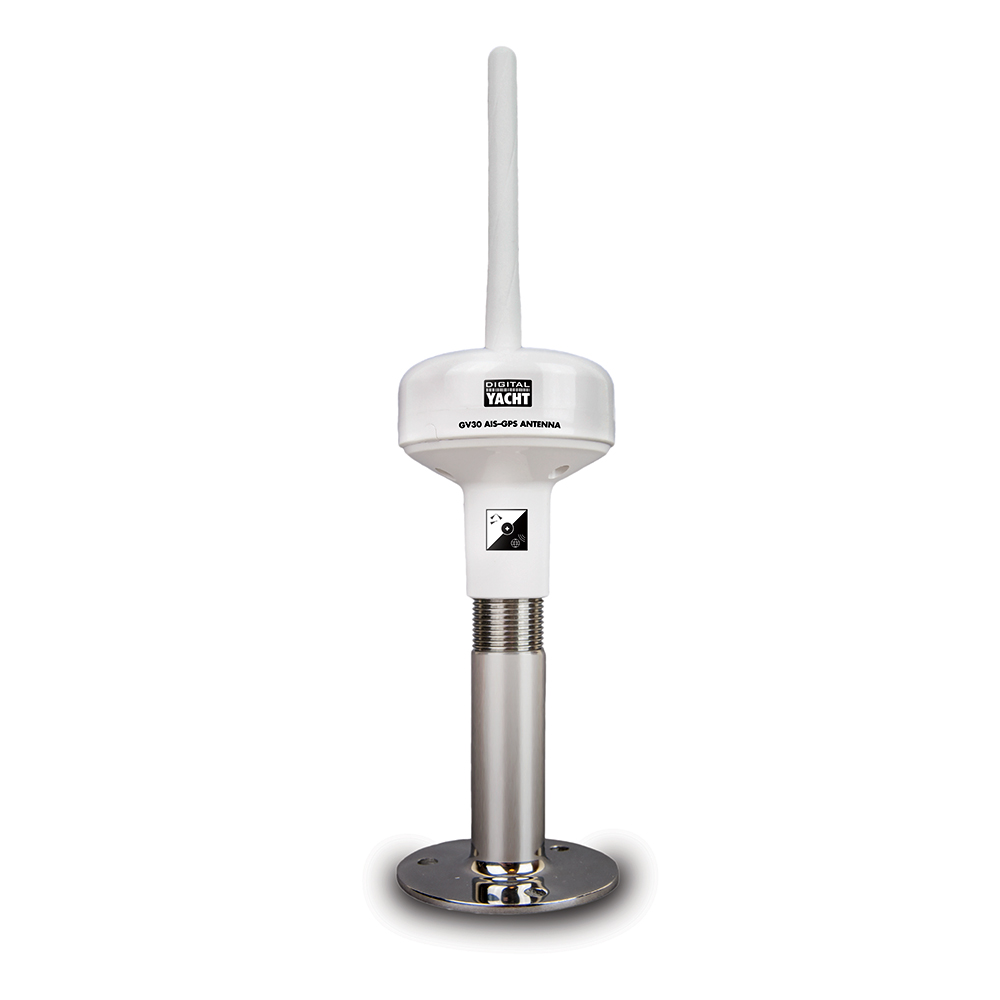

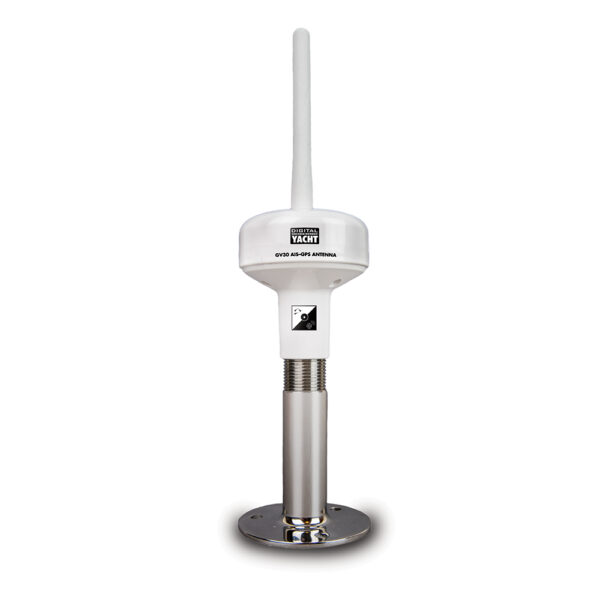

Digital Yacht GV30 VHF/AIS GPS Antenna with 2 x 10m Cables

Model: ZDIGGV30

  • Combination AIS/VHF and GPS antenna
  • Specifically tuned to 162MHz
  • High gain GPS element
  • Supplied with 2 x 10m cable tails fitted with mini connectors for easy cable installation
  • Standard 1" threaded base for compatibility with a variety of mounts available here
  • Supplied with TNC (GPS) and BNC (AIS) adaptors
  • Under 8 inches high for low profile installation

A Class B AIS transponder requires a dedicated GPS antenna (all Class B units must have their own internal GPS and can’t use an external feed for regulatory purposes) as well as a VHF antenna or suitable VHF-AIS antenna splitter. The GV30 is a combination VHF/AIS and GPS antenna with twin coax feeds (33ft).

It’s fitted with a standard 1" threaded base so will mount onto a variety of deck, pole and rail attachments sold separately. The 33ft coax cables are terminated with a FME mini connector which makes running the cable easy as the connector is barely bigger than the 5mm cable. We then supply suitable adaptors for the TNC and BNC connectors on our AIT2000. The GV30 is just 7 inches high and 3 inches in diameter.

Despite its compact dimensions, it offers very good performance as its specifically tuned to 162MHz (AIS frequency). The GV30 is also available with the AIT2000 as a bundle.

What’s in the Box:

  • GV30 Antenna
  • 2 x 10m Cable with FME Connectors
  • TNC Adaptor
  • BNC Adaptor

Additional information

Weight 5.00 lbs
Model Number ZDIGGV30
UPC 081159830076
