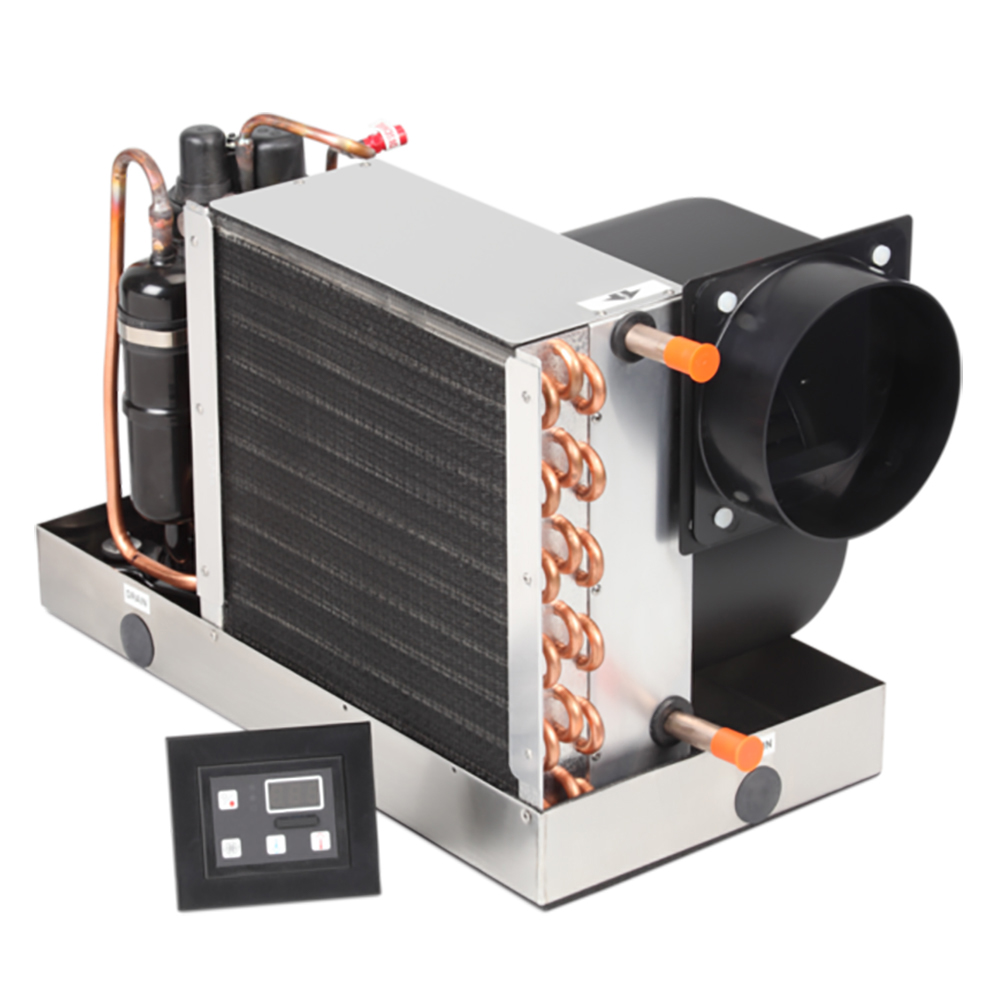

EnviroComfort ECD6KZ-HV AC Retrofit Kit – 6,000 BTU – 230V
The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.
All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.
ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.
Legacy Part Number – 207500307
- High-velocity, rotatable blower for horizontal or vertical installation
- Environmentally friendly R-410A refrigerant
- Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
- Plastic remote electrical box for convenience in mounting
- Stainless-steel drain pan
- Pre-installed return-air filter, easily removable and cleanable
- Small, compact, space-saving design
- Input voltage – 230 V
- Starting amps – 34 A
- Fuse Max. / Min. – 20 A/12 A
- Input frequency 50/60 Hz
- Refrigerant type – R410A
- Colling capacity – 6,000 BTU
- Min. supply duct size – 4″
- Seawater inlet connection – .625″
- Dimensions – Height 11.25″ x Width 16″ x Depth 9″
In the Box:
- Self-contained AC unit
- Digital control w/bezel and 15′ cable
- Instruction manual
*Sold as an Individual
