Description

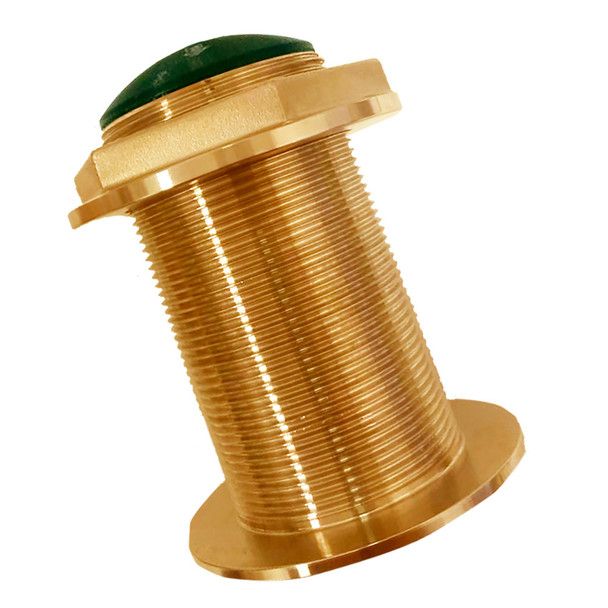

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 12 degree Tilted Element
Model: BT70D600-12
Get target detail in shallow water and good deep-water botoom tracking.
this series is designed to minimiz drag and to perform at high speeds.
Specifications
| Function | Depth and temperature |
| Frequency | 50/200kHz |
| Mount type | Thru-hull |
| Tilt/deadrise | 12° tilte for 8° to 15° hull deadrises |
| Material | Bronze |
| RMS Power | 600 watts |
| Beamwidth | 42° / 11° -3db |
| Depth | Max@50kHz = 1200ft Max at 200kHz = 700ft |
| Temp sensor | NTC |
| Acoustic window | Urethane |
| Weight | 54oz |
| Cable length | 27ft |
| Hole diameter | 2.38″ |
