Description

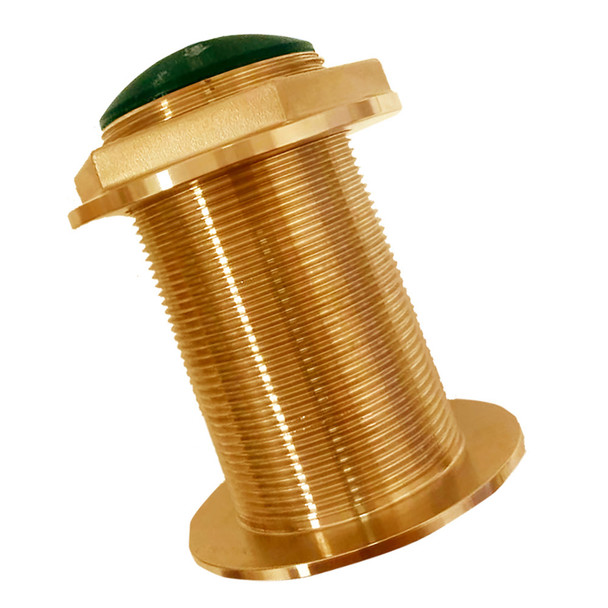

Echonautics BT70MA600 80-130kHz Medium CHIRP 600watts 0° Tilted Element
Model: BT70MA600-00
A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.
Designed to minimize drag and to perform at high speeds
Specifications
| Function | Depth and Temperature |
| frequency | CHIRP 80-130kHz |
| Mount style | Thru Hull |
| Tilt/deadrise | 0° tilted element ; for 0° to 7° hull deadrise |
| Material | Bronze |
| RMS Power | 600 watts |
| Beamwidth | 24° to 17° @3db |
| Depth | max 900ft |
| Temperature sensor | NTC |
| Accoustic window | Urethane |
| Cable length | 27ft |
| Hole diameter | 2.38 in |
