Description

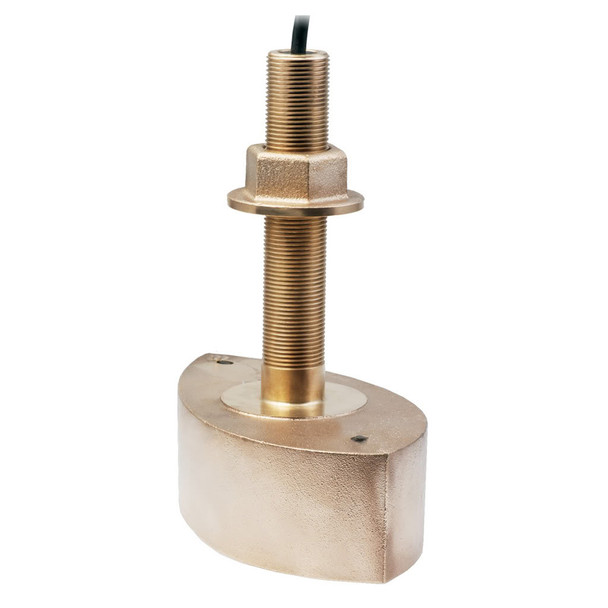

Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull
Model: CB101D600CW
The cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.
The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.
Specifications
| Function | Depth and Temperature |
| Frequency | 50/200 kHz |
| Mount type | Thru-hull fairing block is optional |
| Deadrise | Max deadrise of 20° with fairing block. |
| Material | Bronze |
| RMS power | 600 watts |
| Beamwidth | 50kHz 42° -3db 200kHz 11° -3db |
| Depth | Max @ 50kHz = 1200 ft Max @ 200kHz = 700 ft |
| Temp sensor | NTC |
What’s in the Box:
- CB101D600CW transducer
